15 Inch Open Frame Touch Monitor
15 Inch Open Frame Touch Monitor

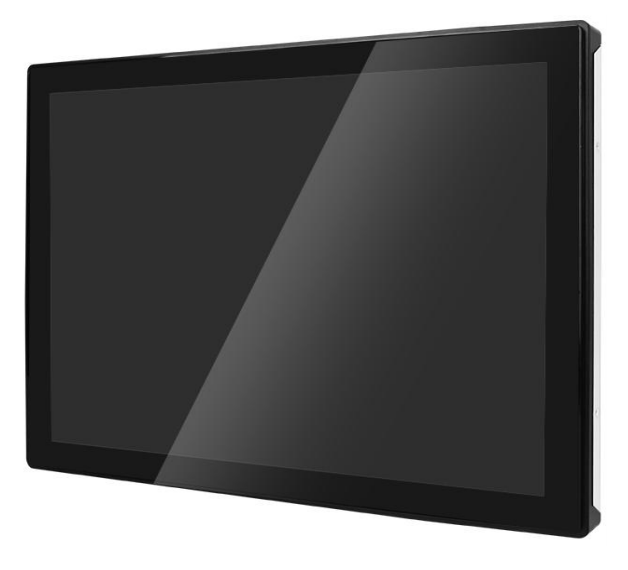

The LFTouch 15 Inch Open Frame Touch Monitor is designed for embedded display applications that require reliable touch performance, compact structure, and stable long-term operation. With a 4:3 TFT-LCD panel, capacitive touch screen, VGA/DVI video input, and USB touch interface, it is suitable for kiosks, industrial equipment, self-service terminals, and control systems.
• 15-inch open frame design for embedded equipment integration
• Capacitive touch technology for smooth and responsive operation
• Compact structure suitable for cabinets, enclosures and machine front panels
• Flexible mounting options for different installation requirements
• Durable touch surface for frequent-use commercial and industrial environments
• Suitable for kiosks, control panels, terminals and customized equipment
• Custom structure, interface, cable and logo options available for project orders
Applications
This 15 inch open frame touch monitor is suitable for self-service kiosks, industrial control panels, vending machines, food ordering terminals, payment terminals, automation equipment and customized embedded display systems.With its open frame structure and flexible mounting design, it can be integrated into cabinets, enclosures, machine front panels and commercial terminal devices where a stable embedded touch display is required.
Specifications
The 15 inch open frame touch monitor is designed for embedded equipment integration, offering a compact 4:3 display, capacitive touch control, flexible video input and reliable mounting options for commercial and industrial applications.
Screen Size: 15 inch
Display Type: 4:3 TFT-LCD
Resolution: 1024 × 768 @60Hz
Active Area: 304.1 × 228.1 mm
Display Colors: 16.7M
Brightness: 250 cd/m² LCD panel, 212 cd/m² with touch screen
Contrast Ratio: 1500:1 typical / 900:1 minimum
Response Time: 30ms
Viewing Angle: Horizontal 80°/80° minimum, Vertical 80°/80° minimum
Touch Screen
Touch Type: Capacitive Touch Screen
Touch Interface: USBTouch
Response Time: ≤10ms
Surface Hardness: 6H
Light Transmittance: ≥85%
Touch Life: ≥50,000,000 touches
Input Voltage: DC 5V ±5%
Interface
Video Input: VGA / DVI
Touch Input: USB
OSD Buttons: AUTO, +, POWER, -, MENU
OSD Functions: Brightness, Contrast, Auto-adjust, Phase, Clock, H/V Location, Language, Function, Reset
Power
Power Supply Type: External Power Adapter
Display Voltage: DC 12V ±5%
Input Voltage: 100–240V AC, 50–60Hz
Power Consumption: ≤1.5W standby, ≤20W operating
Mechanical
Monitor Dimensions: 350.4 × 274.4 × 45 mm
Mounting Interface: VESA 75mm
Installation: Mount bracket, horizontal or vertical mounting
Net Weight: 3.05 kg / pc
Environment
Operating Temperature: 0°C to 50°C
Operating Humidity: 20% to 80%
Storage Temperature: -20°C to 60°C
Storage Humidity: 10% to 90%
MTBF: ≥30,000 hours
LED Backlight Life: ≥30,000 hours
System Support
Supported Systems: Windows XP, Windows 7, Windows 8, Windows 10, Linux, Android
Certification CCC, UL, FCC, CE, CB, RoHS
Warranty
Regular Warranty: 1 year

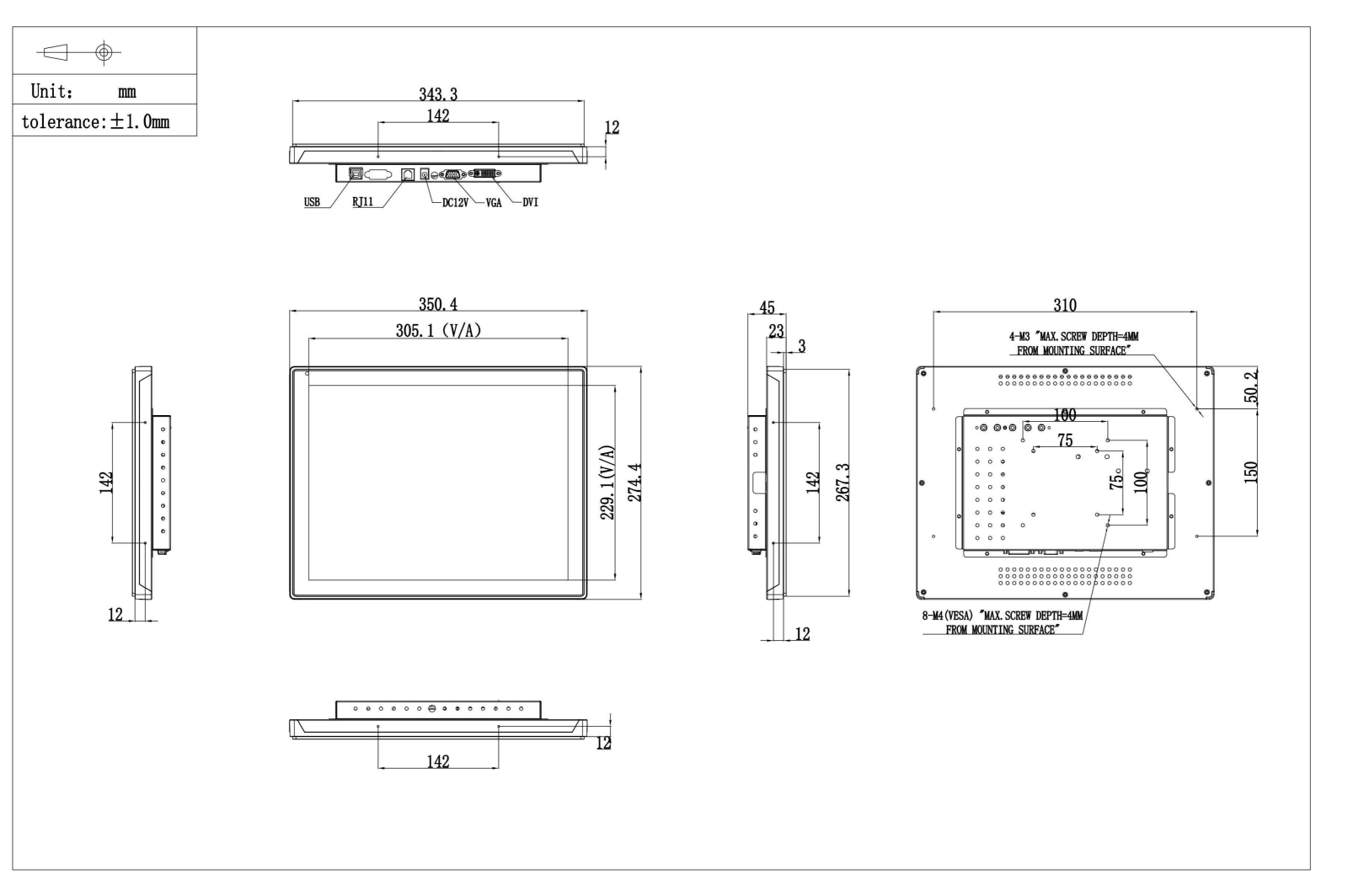

Mechanical Drawing
The mechanical drawing provides the main outer dimensions, mounting positions and structure reference for this 15 inch open frame touch monitor. It helps engineers and project teams evaluate installation space, cabinet opening size and mounting compatibility before integration.
For custom cabinet, kiosk or machine integration, please confirm the final mechanical structure, mounting method and cable direction with our team before production.
