Open Frame Touch Computer

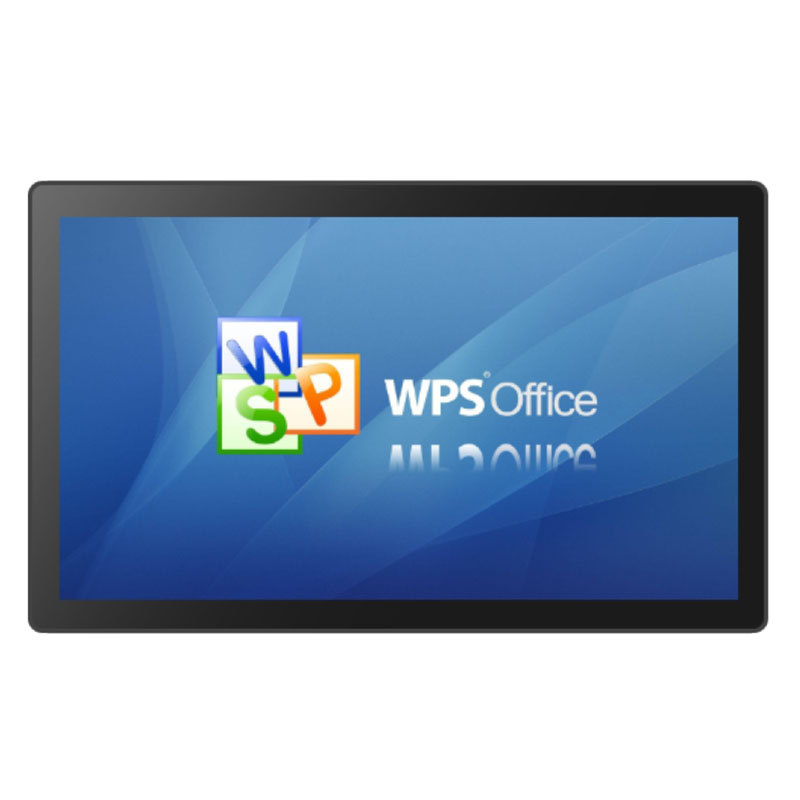

21.5” Open Frame Touch Computer
The 21.5" Open Frame Touch Computer is designed for kiosk integration, self-service terminals and industrial embedded applications. It combines a Full HD display, projected capacitive 10-point multi-touch and integrated computing performance in one compact open frame design. With Intel Core i5, 8GB RAM and 256GB eMMC storage, it delivers stable operation and flexible connectivity for a wide range of interactive systems.
Key Features
• 21.5-inch Full HD TFT-LCD display
• Projected capacitive 10-point multi-touch
• Intel Core i5 processor
• 8GB RAM and 256GB eMMC storage
• 2 x COM, 4 x USB, 2 x LAN, HDMI and Audio/Mic interfaces
• Open frame structure for easy integration
• VESA 75mm and 100mm mounting support
• Support Windows, Android and other system options
Applications
• Self-service kiosks
• Retail terminals
• Industrial control systems
• Medical equipment
• Smart service devices
Specifications
Display Size: 21.5"
Display Type: 16:9
TFT-LCD Resolution: 1920 × 1080 @ 60Hz
Active Area: 476.64 × 268.11 mm
Support Colors: 16.7M
Brightness: 250 cd/m² (LCD) / 212 cd/m² (With Cover Glass)
Response Time: 25 ms
Viewing Angle: 89°/89° (Horizontal), 89°/89° (Vertical)
Contrast Ratio: 3000:1
Touch Technology: Projected Capacitive Touchscreen
Touch Points: 10-Point Multi-Touch
CPU: Intel Core i5RAM: 8GB
Storage: 256GB eMMC
I/O Ports: 2 x COM, 4 x USB, 2 x LAN RJ45, 1 x HDMI, 1 x Audio/Mic
Mounting: VESA 75mm / 100mm
Dimensions: 518 × 313 × 58 mm
Power Supply: External Brick, 100-240 VAC, 50-60 HzPower Consumption: 35W (Approx.)
Standby Power Consumption: 0.80W (Approx.)
Operating Temperature: 0°C to 50°C
Operating Humidity: 20% to 80% RH
Storage Temperature: -10°C to 60°C
Storage Humidity: 10% to 90% RH
MTBF: 30,000 Hours
Backlight Life: 30,000 Hours
Net Weight: 6.2 kg
Gross Weight: 14.1 kg (2 pcs per package)
Package Dimensions: 675 × 480 × 230 mm (2 pcs per package)
Certifications: CCC, ETL, FCC, CE, CB, RoHS
Operating Systems: Windows, Android and other systems
Warranty: 1 Year

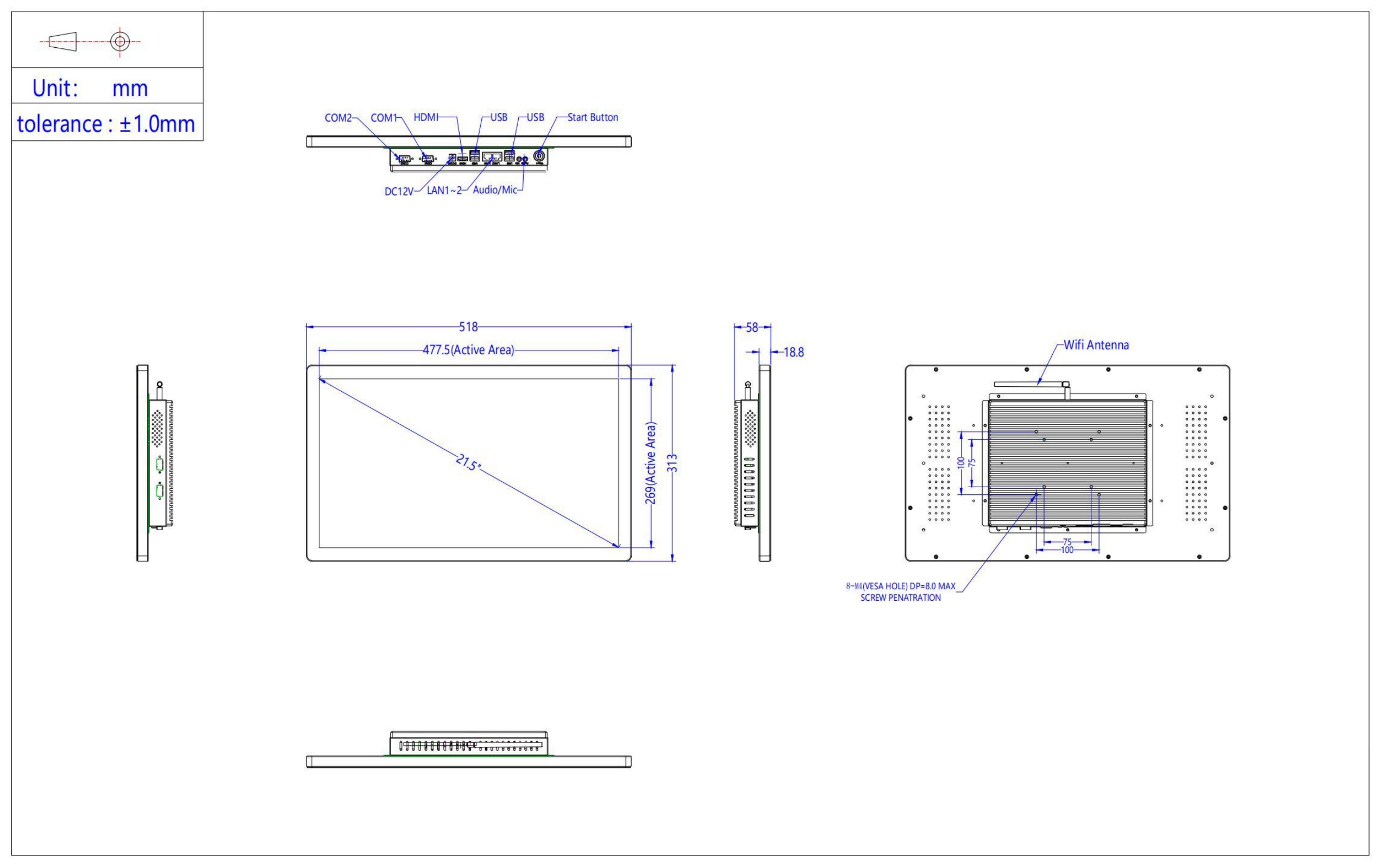

Mechanical Drawing
Need more details or custom options for your project? Contact LFTouch for technical support and quotation.
