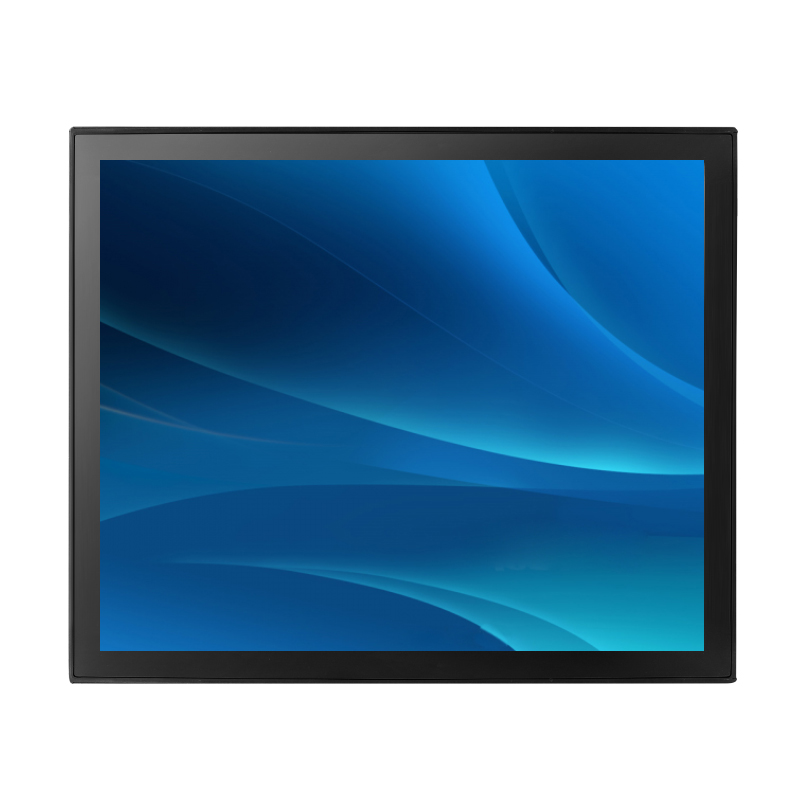

17 Inch Open Frame Touch Monitor
Industrial Touch Display for Kiosk
The 17 inch open frame touch monitor is designed for kiosk, industrial control, self-service terminals and embedded equipment. With a 5:4 TFT-LCD panel, 1280×1024 resolution, capacitive touch screen and VGA/DVI video input, it provides stable display and touch performance for long-term commercial and industrial applications.Its compact open frame structure supports VESA mounting and bracket installation, making it easy to integrate into machines, cabinets and custom enclosures.
17 inch 5:4 TFT-LCD display1280×1024 resolution for clear image qualityCapacitive touch screen with USB touch inputVGA and DVI video input supported1000:1 contrast ratio for stable visual performanceWide viewing angle for different installation environments6H surface hardness for better touch panel durabilityFast touch response time ≤10msVESA 75mm and 100mm mounting supportSupports horizontal or vertical installationCompatible with Windows, Linux and Android systemsSuitable for kiosk, industrial and embedded applications
Applications
Self-service kiosksIndustrial control panelsInformation terminalsPOS and payment systemsAccess control equipmentTicketing machinesCheck-in terminalsMachine control interfacesEmbedded display systemsCommercial interactive equipment
Specificaiton
Product Type: Open Frame Touch Monitor
Display Size: 17 inch
Display Type: 5:4 TFT-LCD
Active Area: 337.9 × 270.3 mm
Monitor Dimensions: 378.9 × 313.3 × 47.3 mm
Suggested Resolution: 1280 × 1024 @ 60Hz
Support Colors: 16.7M
Brightness: 250 cd/m² LCD panel / 212 cd/m² with touch
Response Time: 5ms
Viewing Angle: H 85°/85°, V 80°/80°
Contrast Ratio: 1000:1
Video Input: VGA / DVI
Frequency: 37.9–80KHz / 60–75Hz
Power Supply: External brick, DC 12V ±5%
Input Voltage: 100–240 VAC, 50–60Hz
Power Consumption: ≤20W operating, ≤1.5W standby
Operating Temperature: 0–50°C
Storage Temperature: -20–60°C
Operating Humidity: 20%–80% RH
Storage Humidity: 10%–90% RH
MTBF: ≥30,000 hours
Backlight Life: ≥30,000 hours
Mounting: VESA 75mm / 100mm, bracket mount
OSD Control: Brightness, contrast, auto-adjust, phase, clock, position, language, reset
Certifications: CCC, ETL, FCC, CE, CB, RoHS
Warranty: 1 year
Touch Type: Capacitive touch screen
Touch Input: USB
Touch Response Time: ≤10ms
Surface Hardness: 6H
Light Transmittance: ≥85%
Touch Active Area: 340.92 × 273.34 mm
Touch Thickness: 3.9 ±0.3 mm
Touch Test: ≥50,000,000 times
Touch Input Voltage: DC 5V ±5%
Supported System: Windows XP / Windows 7 / Windows 8 / Windows 10 / Linux / Android

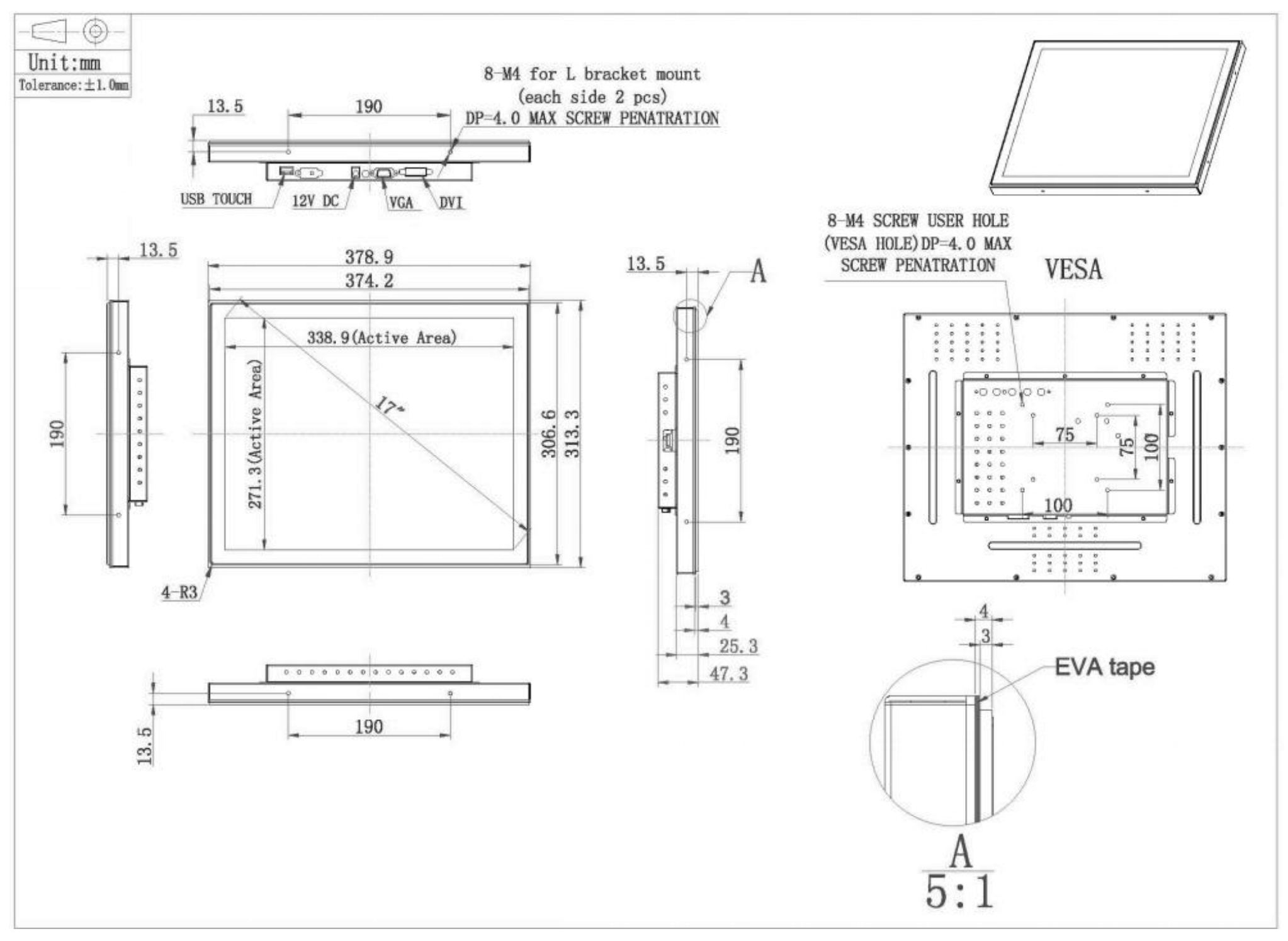

Mechanical Drawing
