27 Inch Open Frame Touch Monitor

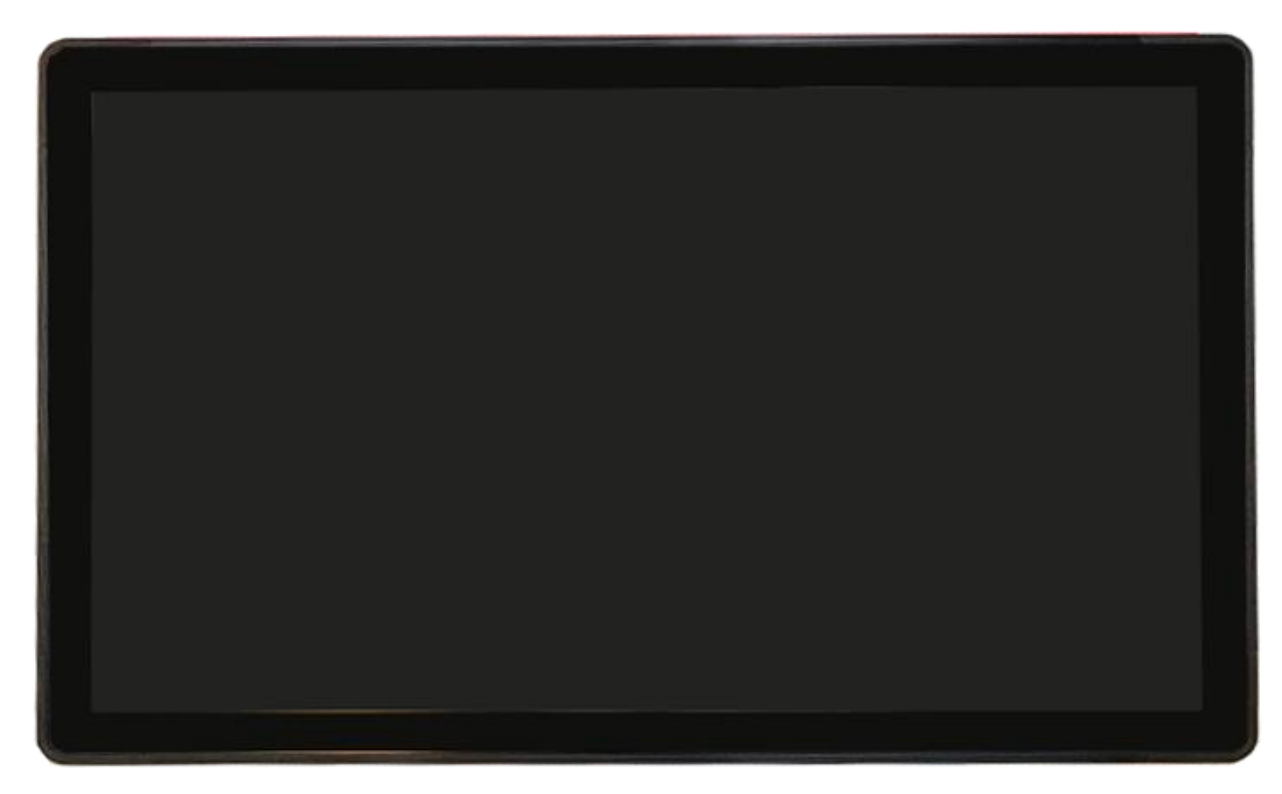

27" Full HD PCAP Open Frame Touch Monitor
A 27-inch open frame PCAP touch monitor designed for industrial integration, self-service terminals, kiosks, automation equipment and embedded display applications. It features a Full HD display, flat front design, USB touch input, multiple video interfaces and flexible mounting options for professional projects.
• 27-inch Full HD TFT-LCD display with 1920 × 1080 resolution
• Projected capacitive touch technology for smooth and accurate touch response
• Pure flat front design for easy integration into kiosks and equipment panels
• VGA, DVI and HDMI video input options
• USB touch interface, compatible with Windows, Linux and Android systems
• Wide viewing angle for clear image display from different directions
• Supports VESA mounting and bracket installation for horizontal or vertical use
Applications
• Self-service kiosks
• Industrial control panels
• Digital signage terminals
• Information inquiry systems
• Retail and payment terminals
• Automation equipment
• Embedded touch display solutions
Specifications
Display
Display Size: 27 inch
Display Type: 16:9 TFT-LCD
Active Area: 599.3 × 337.8 mm
Resolution: 1920 × 1080 @ 60Hz
Support Colors: 16.7M
Brightness: 300 cd/m² LCD panel / 240 cd/m² with touch monitor
Response Time: 12ms
Viewing Angle: Horizontal 89°/89°, Vertical 89°/89°
Contrast Ratio: 3000:1
Touch
Touch Type: 27-inch projected capacitive touch screen
Touch Interface: USB
Interface
Video Input: VGA / DVI / HDMI
Frequency: 30–80KHz / 50–76Hz
Power
Power Supply: External brickDisplay Voltage: DC 12V ±5%
Input Voltage: 100–240VAC, 50–60Hz
Power Consumption: Standby 2W / Operating ≤45W
Structure
Monitor Dimensions: 655.9 × 394.4 × 48.5 mm
Mounting: VESA 75mm / 100mm, mounting bracket, horizontal or vertical mount
Environment
Operating Temperature: 0°C to 50°C
Operating Humidity: 20% to 80%
Storage Temperature: -20°C to 60°C
Storage Humidity: 10% to 90%S
ystem Support
Supported OS: Windows XP, Windows 7, Windows 8, Windows 10, Linux, Android
Reliability & Certification
MTBF: 30,000 hours
LED Backlight Life: 30,000 hours
Agency Approvals: CCC, ETL, FCC, CE, CB, RoHS
Warranty: 1 year

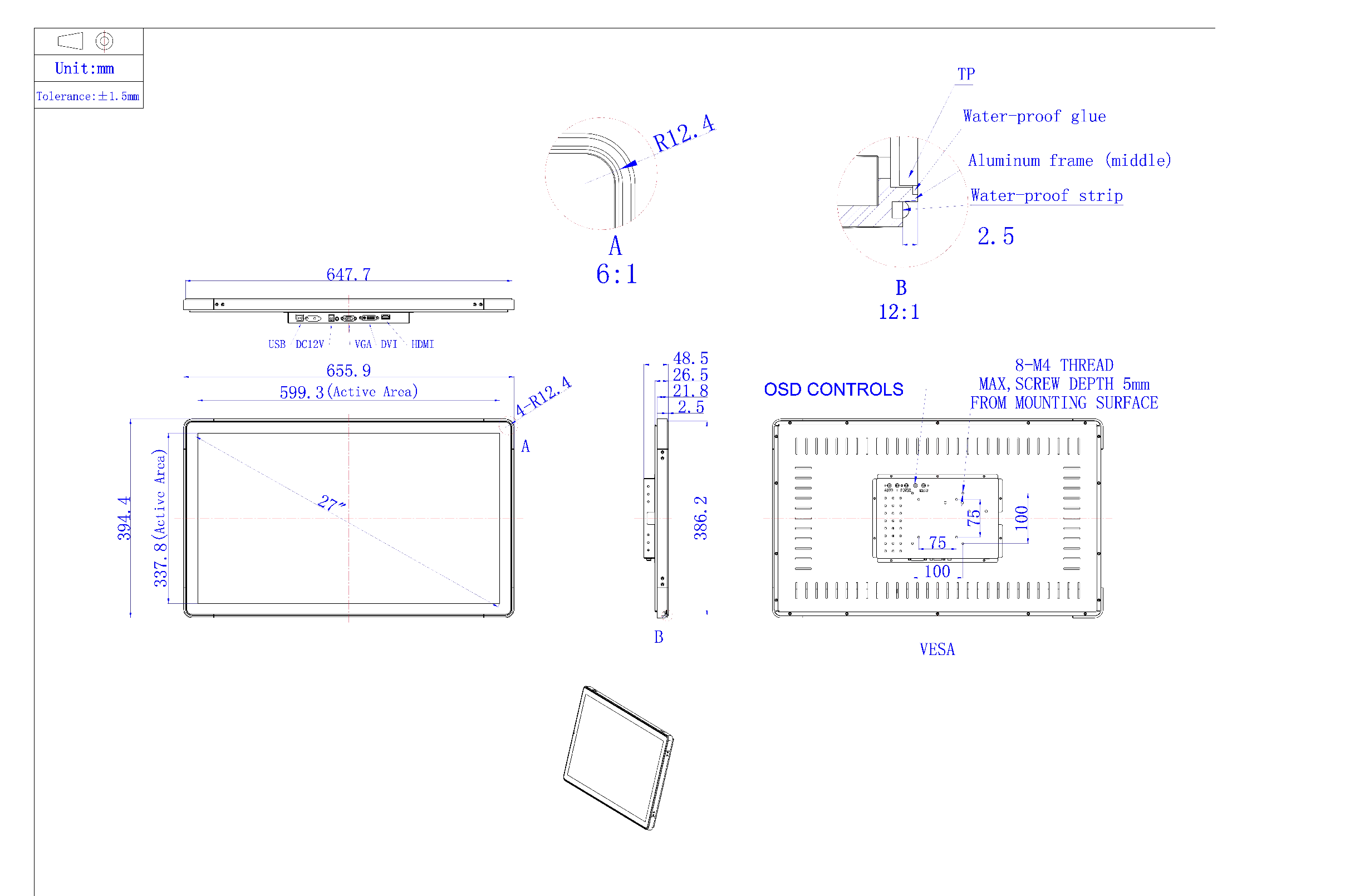

Mechanical Drawing
The mechanical drawing provides the main product dimensions, active display area, mounting position, VESA hole layout, OSD control position and installation reference. It helps engineers and system integrators confirm cabinet openings, bracket design and installation space before project integration.
Request a Quote
Looking for a 27-inch open frame touch monitor for your project? Contact LFTouch to discuss your application, mounting requirements, interface needs and customization options.
