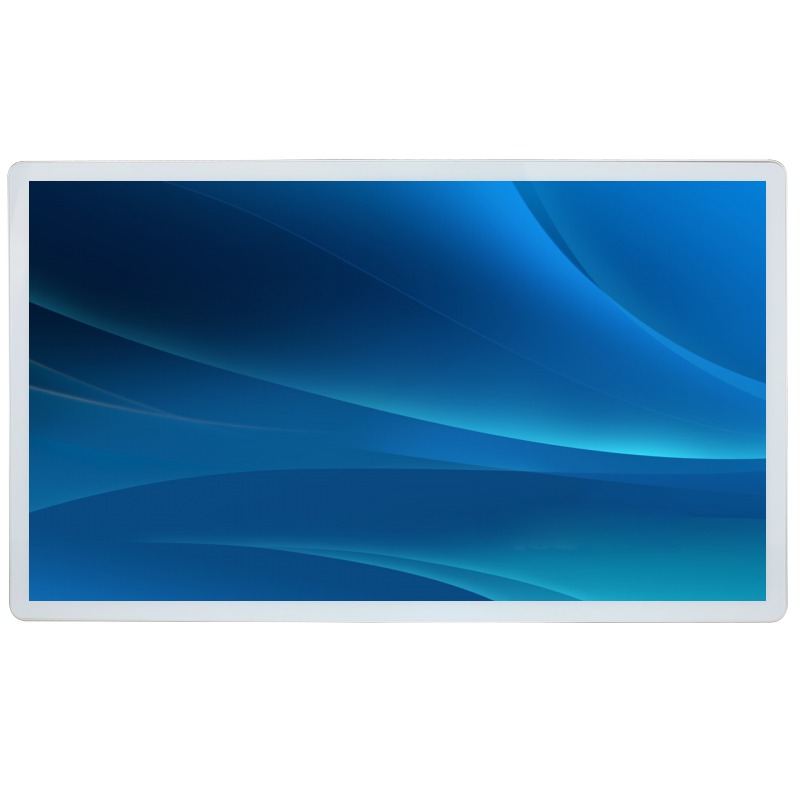

43 Inch Open Frame Touch Monitor
43 Inch Open Frame Touch Monitor for Commercial Display Applications
The LFTouch 43 inch open frame touch monitor is designed for embedded kiosk systems, self-service terminals, industrial control panels, and interactive digital signage applications. It features a Full HD 1920×1080 TFT-LCD display, projected capacitive touch technology, anti-glare tempered cover glass, front IP65 protection, and multiple video inputs including VGA, DVI, and HDMI. With a durable open-frame structure and stable touch performance, it is suitable for projects that require reliable integration into custom equipment.
• 43 inch 16:9 TFT-LCD display with Full HD 1920×1080 resolution
• Projected capacitive touch screen with USB touch input
• Anti-glare tempered glass for better durability and user experience
• Front surface IP65 protection for demanding public-use environments
• Typical brightness of 320 cd/m² with touch monitor
• Wide viewing angle: 89°/89° horizontal and 89°/89° vertical
• 3000:1 typical contrast ratio for clear image performance
• VGA, DVI, and HDMI video input options
• External 24V DC power supply design
• Compatible with Windows, Linux, and Android systems
Applications
The 43 inch open frame touch monitor is suitable for integration into self-service kiosks, interactive digital signage, wayfinding systems, retail information terminals, industrial control equipment, ticketing machines, payment terminals, exhibition displays, and other custom embedded touch solutions. Its large display size, PCAP touch technology, and open-frame structure make it a practical choice for projects that need a reliable touch interface inside a customized enclosure.
Specifications
Model Number: MC430270
Display Type: 43" TFT-LCD, 16:9 ratio
Active Area: 942.9 × 531.25 mm
Monitor Dimensions: 1004 × 592 × 64.6 mm
Suggested Resolution: 1920 × 1080 @ 60Hz
Display Colors: 16.7M
Brightness: 380 cd/m² (bare panel) / 320 cd/m² (with touch glass)
Response Time: 6.5 ms typical
Viewing Angle: Horizontal 89°/89°, Vertical 89°/89°
Contrast Ratio: 3000:1 typical
Video Input: VGA / DVI / HDMI
Frequency: 30–80KHz / 60–75Hz
Power Supply: External brick, DC 24V ±5%
Input Voltage: 100–240 VAC, 50–60Hz
Operating Temperature: -10°C to 50°C
Operating Humidity: 20%–80%
Storage Temperature: -20°C to 60°C
Storage Humidity: 10%–90%
MTBF: 50,000 hours
LED Backlight Life: 50,000 hours
Touch Type: 43" projected capacitive touch screen, anti-glare tempered type
Touch Input: USB
Supported System: Windows XP / Windows 7 / Windows 8 / Windows 10 / Linux / Android
Agency Approvals: CCC / ETL / FCC / CE / CB / RoHS
Regular Warranty: 1 year

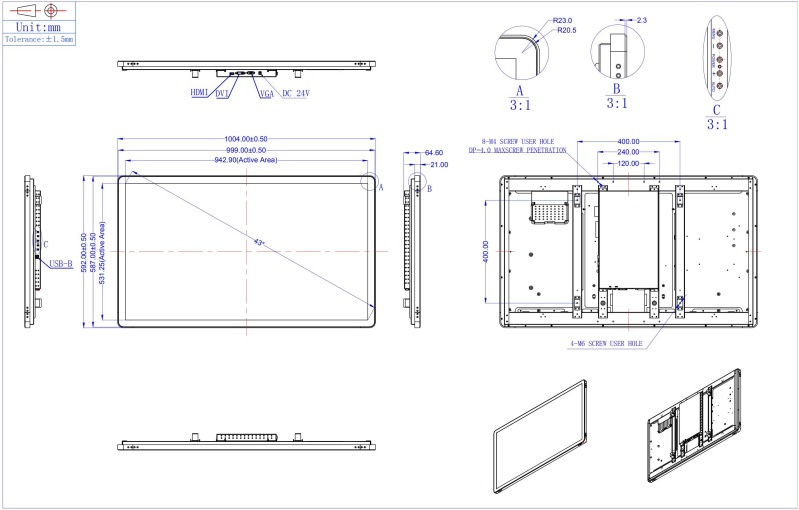

Mechanical Drawing
The drawing below shows the overall dimensions and mounting hole positions of the 43-inch open frame touch monitor. Custom mounting structures are available on request.
Request a Quote
Looking for a 43 inch open frame touch monitor for your kiosk, industrial equipment, or interactive display project? Tell us your required quantity, installation method, touch requirements, brightness needs, and application scenario. LFTouch can help recommend a suitable touch display solution for your project.
