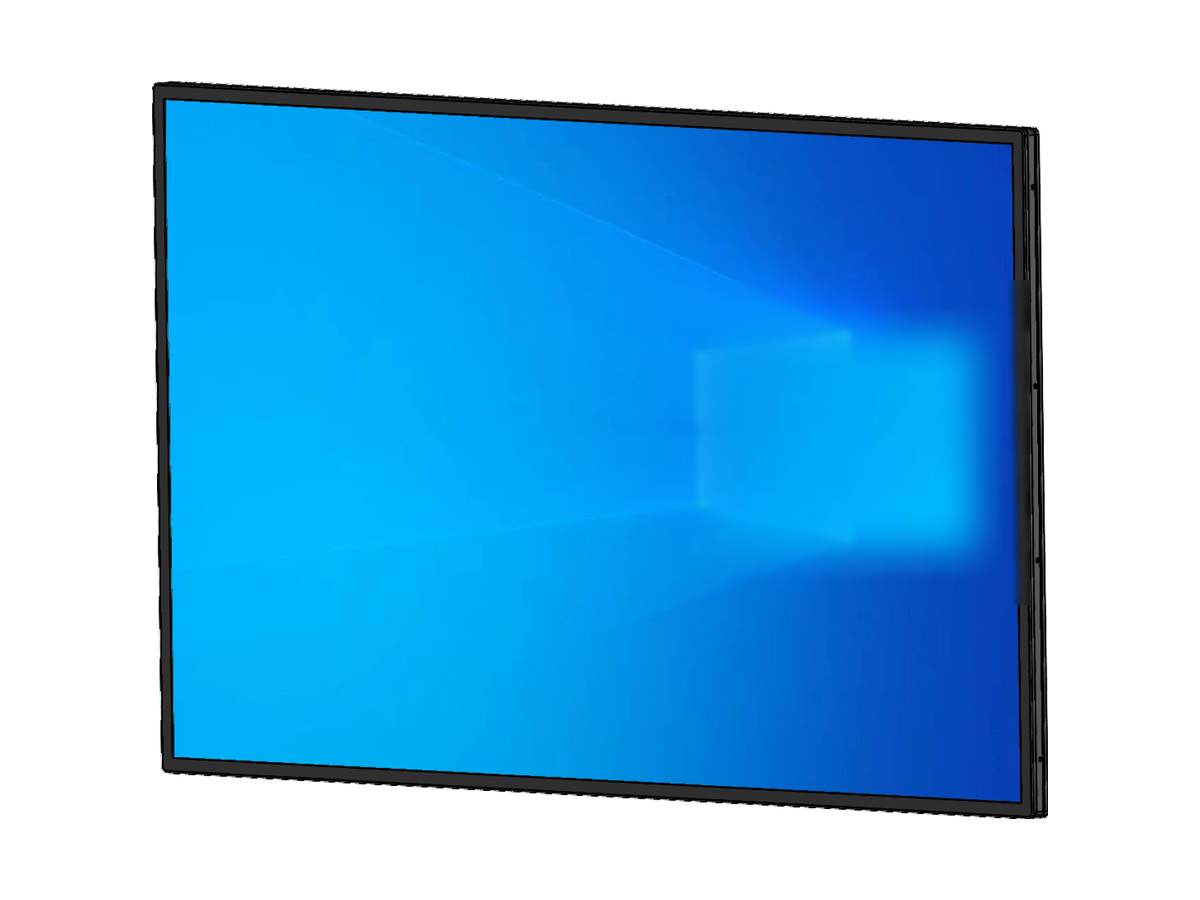

WM Series Wall-Mounted Advertising Display
Five sizes — 32″ / 43″ / 50″ / 55″ / 65″ — built on one slim,
unified enclosure design. Powered by an industrial Android mainboard with wired / Wi-Fi / 4G
networking, the WM Series lets you publish and manage content remotely across every screen
from a single cloud platform.
Five Sizes, One Design
All WM models share the same brushed-aluminum frame, 4 mm tempered-glass front and Full HD
commercial panel — pick the size that fits your wall, keep one look across the site.
| Specification | WM32 | WM43 | WM50 | WM55 | WM65 |
|---|---|---|---|---|---|
| Screen Size | 32″ | 43″ | 50″ | 55″ | 65″ |
| Display Area (W × H) | 698.5 × 393 mm | 941 × 530 mm | 1096 × 616 mm | 1210.5 × 681 mm | 1428.5 × 804 mm |
| Native Resolution | 1920 × 1080 Full HD (16:9) | ||||
| Brightness | 300 cd/m² | 350 cd/m² | 350 cd/m² | 350 cd/m² | 350 cd/m² |
| Viewing Angle | 178° / 178° (H/V) | ||||
| Response Time | 8 ms | ||||
| Rated Power | 45 W | 65 W | 85 W | 100 W | 120 W |
| Standby Power | < 0.5 W | < 3 W | < 3 W | < 3 W | < 3 W |
| Outline Dimensions (W × H × D) | ≈ 723.4 × 418.1 × 76.6 mm | See dimension drawings below | |||
| TV System | PAL / NTSC / SECAM | ||||
Built for 7-Day Commercial Operation
Every WM display ships with the same industrial hardware platform and enclosure process.
Remote Cloud PublishingLandscape / Portrait 360°
Scheduled Power On/OffRemote Control Included
2 × 7 W Stereo Speakers4 mm Tempered Glass
Brushed Aluminum FrameWall or Ceiling Mount
Multi-Language UICE · FCC · RoHS
Slim Metal Enclosure
Brushed aluminum-profile frame, 4 mm tempered-glass front, piano-lacquer finish and cold-rolled steel back cover.
Flexible Installation
Wall-mounted in landscape or portrait with 360° on-screen rotation; ceiling-hanging installation also supported.
Wide Power & Environment
110–240 V, 50/60 Hz universal input. Operating -5 ~ 50 °C, storage -35 ~ 60 °C, humidity 10–90%.
Complete Accessories
Mounting screws, user manual, power cord, security keys, certificate of quality and warranty card in every box.
Mainboard & System
An industrial Android platform designed for continuous signage playback and easy integration.
Processor
RK3566 quad-core industrial board @ 1.8 GHz
Memory & Storage
2 GB RAM + 32 GB internal storage
Network
Wired Ethernet (RJ-45) and Wi-Fi
Interfaces & Audio
2×USB, 1×SD, 1×RJ-45, 1×HDMI, 1×DC-12V
Remote Publishing System
The Android network version ships with a multimedia information publishing system —
a server-side management platform plus on-device player, so one operator can run
hundreds of screens from anywhere.
Split-Screen Program Editor
Compose layouts with video, images, scrolling text, logo, date and weather zones — no coding required.
Playlists & Scheduling
Build playlists, publish by time schedule, and insert breaking content instantly across selected terminals.
Terminal Fleet Management
Remote power on/off, remote firmware upgrade and real-time terminal status monitoring from the server console.
Three Versions to Match Your Project
Same enclosure and panel across all versions — choose the playback workflow that fits your operation.
USB Standalone Version
Plug-and-play: copy media to a USB drive and the screen loops it automatically.
Simplest option for single screens with rarely changing content.
Smart Standalone Version
Built-in storage with USB import — copy once and the display plays from internal
memory, no drive left attached. Ideal for small deployments without network.
Android Network Version
Full remote publishing over wired / Wi-Fi / 4G with the cloud management platform:
split-screen programs, scheduling, remote power and status monitoring for multi-screen networks.

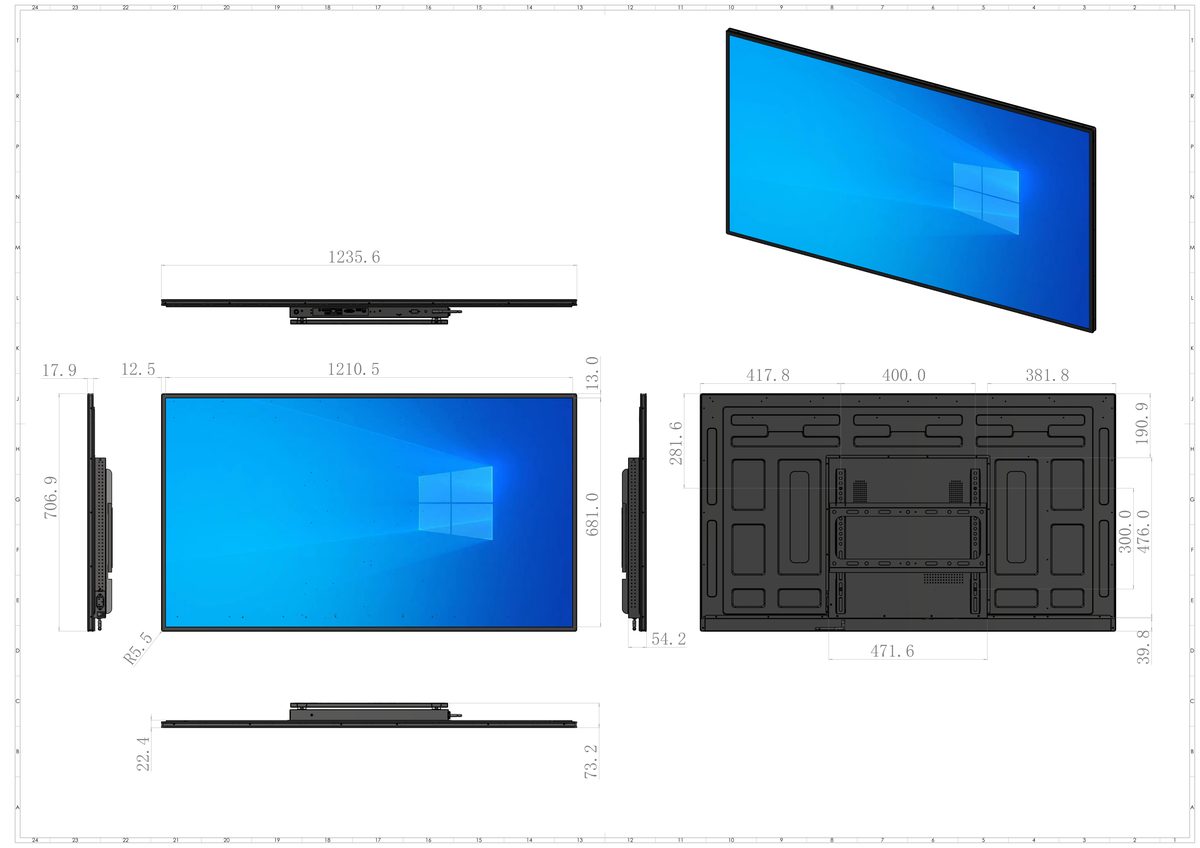

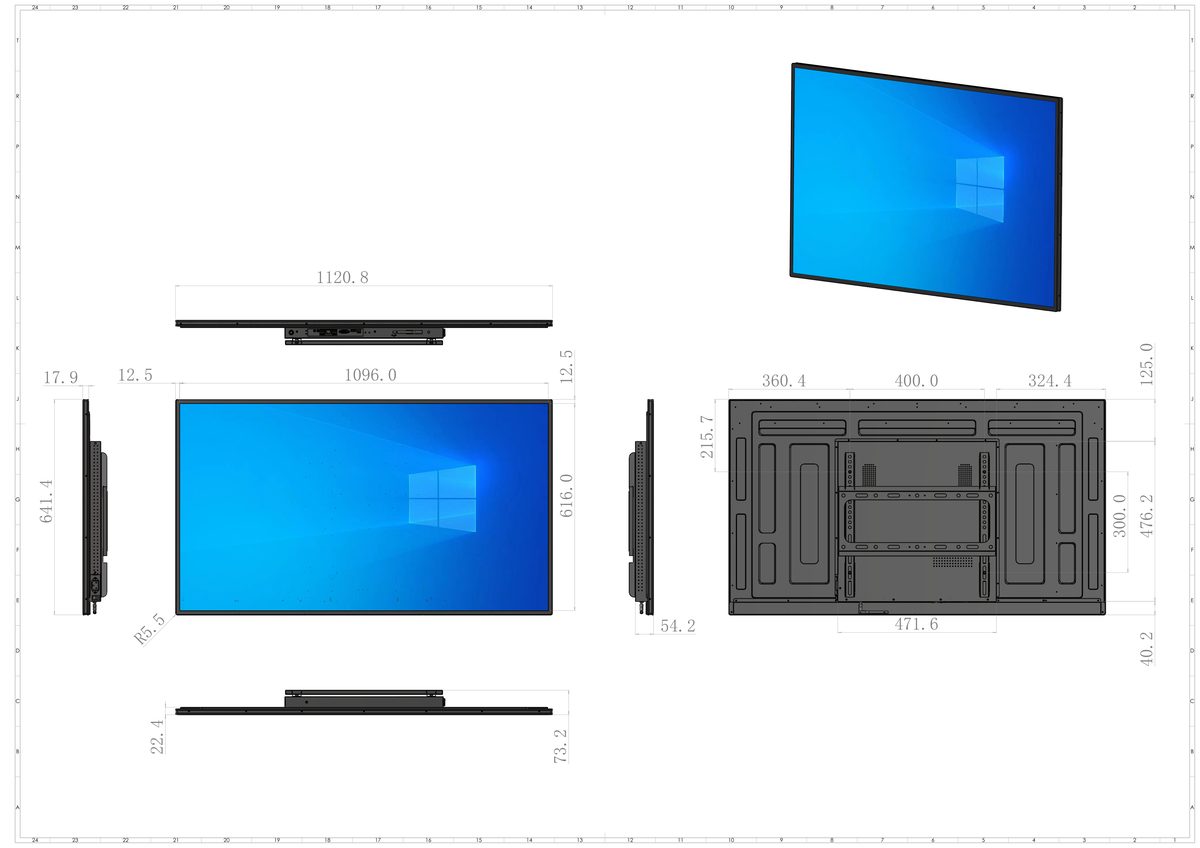

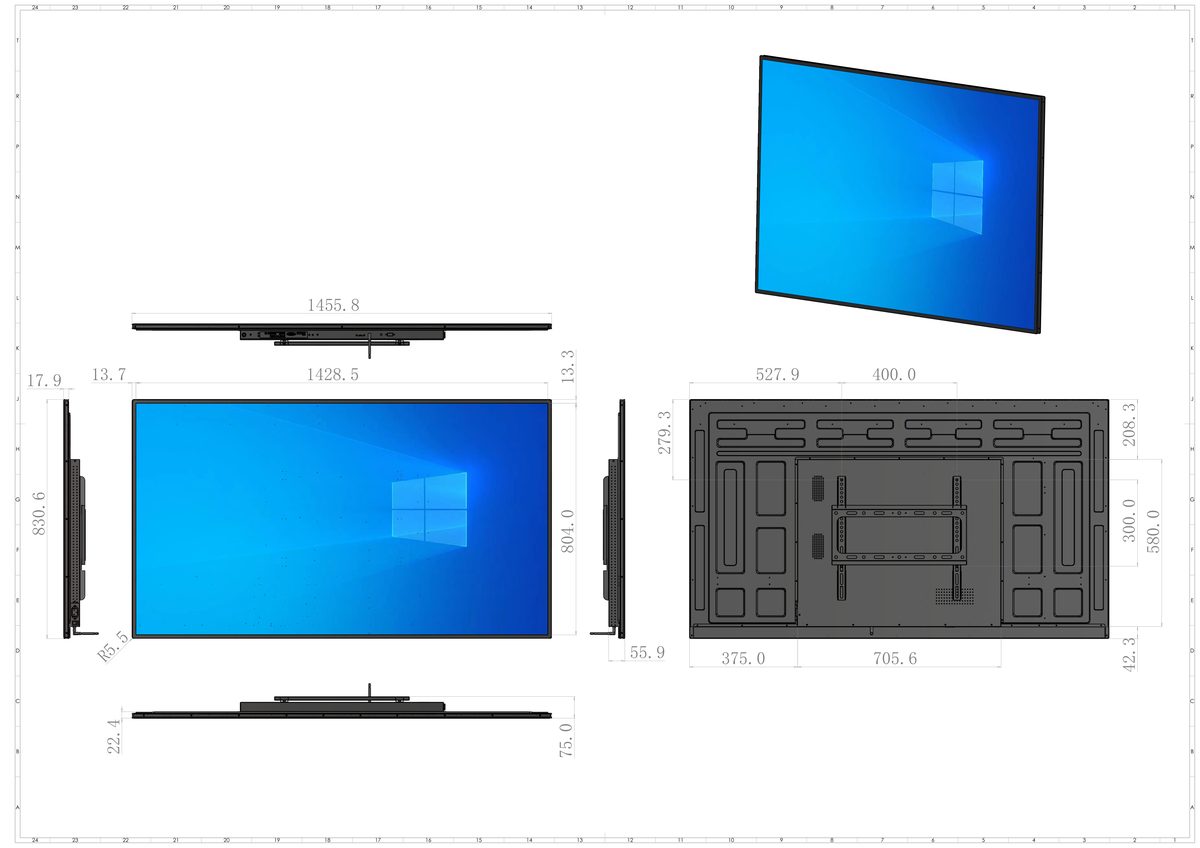

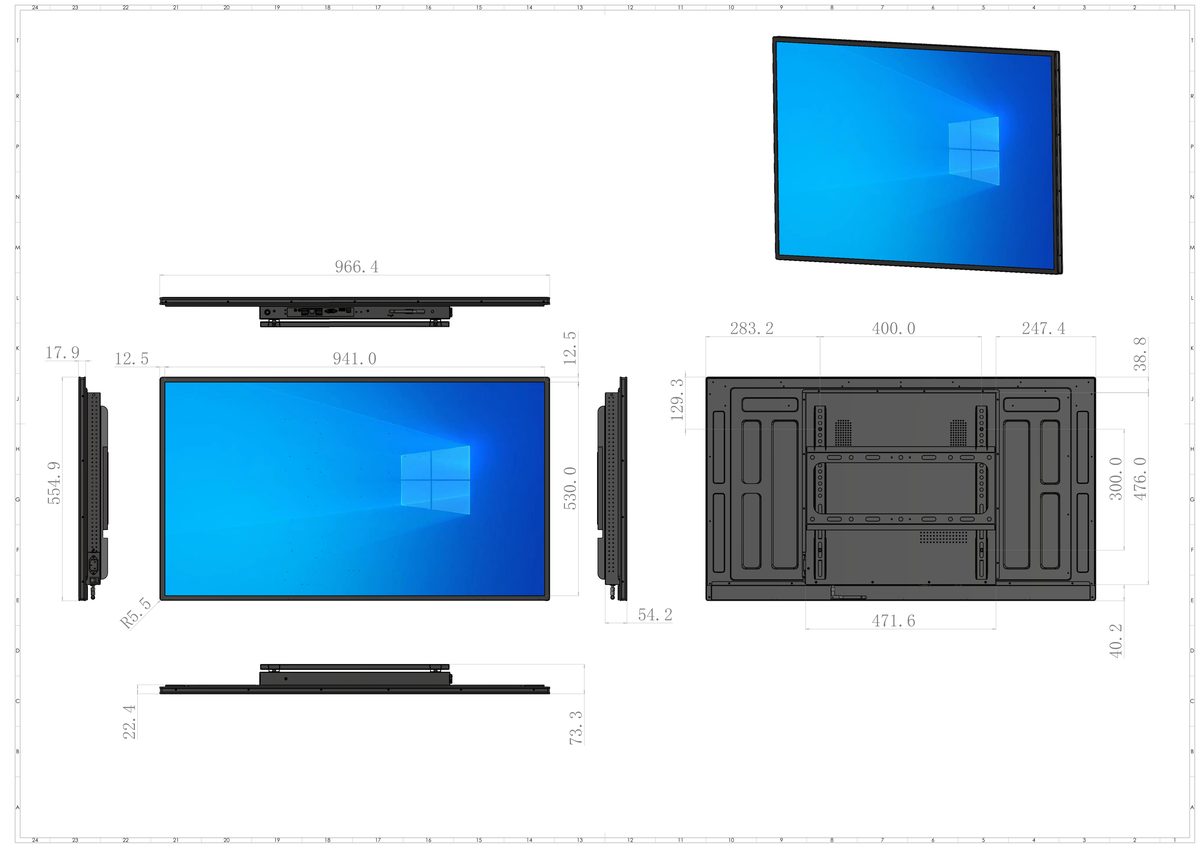

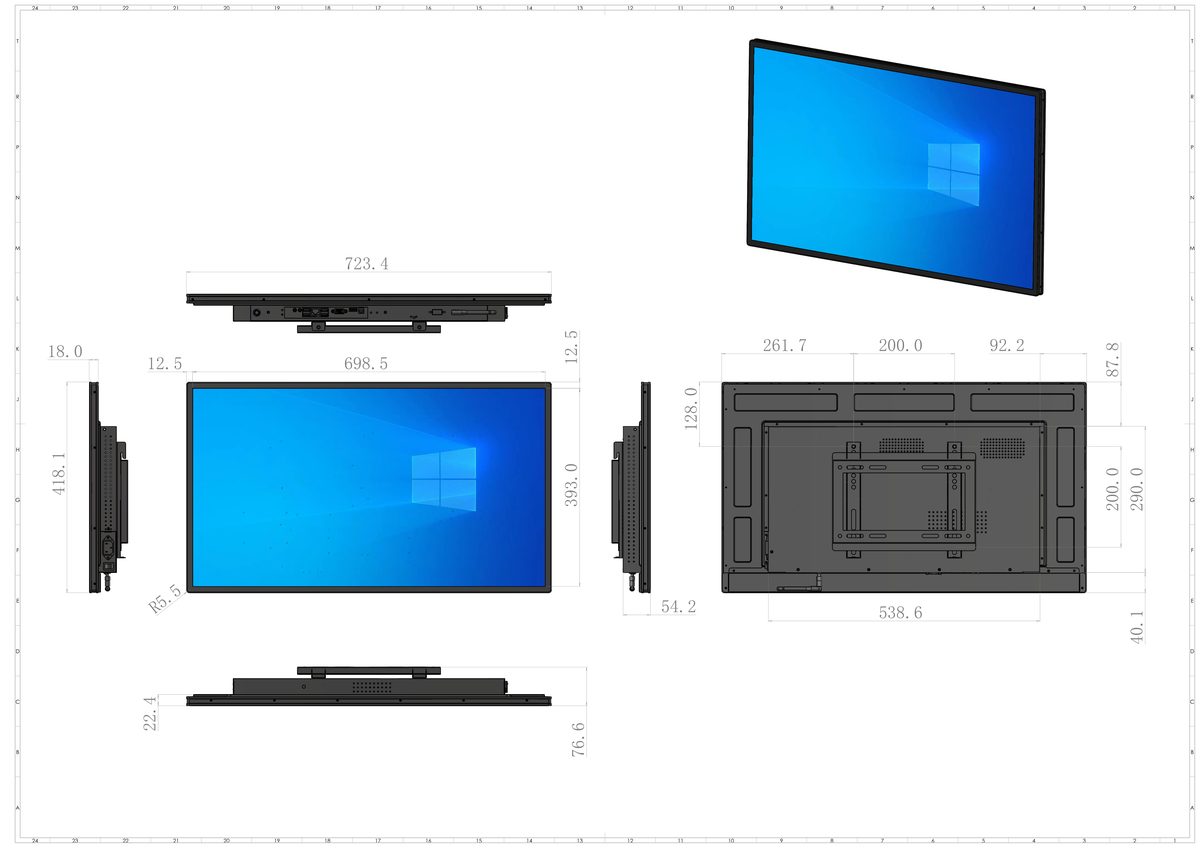

Dimension Drawings
Mechanical drawings for all five sizes. Contact us for CAD files and mounting-hole details.
Frequently Asked Questions
Can the WM Series be installed in both landscape and portrait?
Yes. The enclosure is wall-mount ready in either orientation, and the on-screen display
supports 360° rotation, so the same unit works for menu boards, corridor signage and
portrait poster-style advertising. Ceiling-hanging installation is also supported.
How does remote publishing work?
The Android network version connects over Ethernet, Wi-Fi or optional 4G to the multimedia
publishing platform. From the server console you can edit split-screen programs, build
playlists, schedule or insert content, power terminals on/off, push firmware upgrades and
monitor the status of every screen remotely.
Can I order a custom color?
Standard finishes are elegant black and flowing silver. A gold finish is available as a
custom option — contact our sales team with your quantity and color reference for a quote.
What warranty and certifications are included?
Every WM display carries a 12-month whole-unit warranty and ships with certificate of
quality and warranty card. The series is CE, FCC and RoHS certified
(CCC available for domestic projects).
Ready to Roll Out Your Wall-Mounted Signage Network?
Send us your sizes, quantities and installation scenario — we reply with pricing, drawings and lead time within 24 hours.
