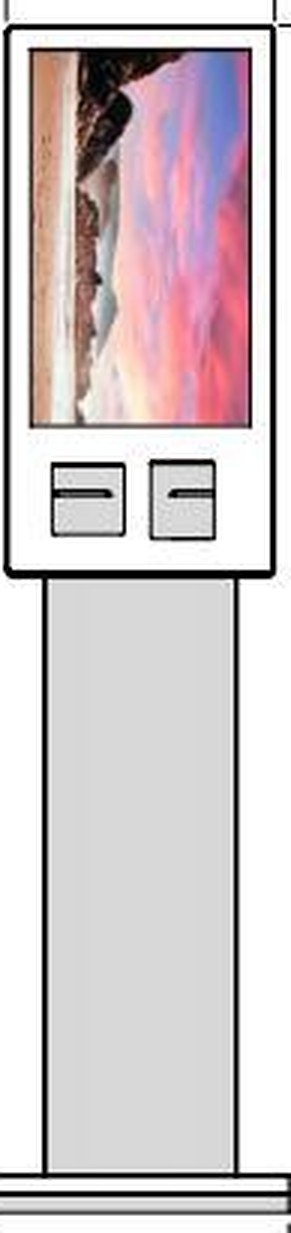

23.8-Inch Self-Service Terminal — All-in-One Kiosk with QR Scanner, Printer & Camera
The LFTouch 23.8-inch self-service terminal integrates a Full HD capacitive touch display,
an Android mainboard, a QR code reader, a 58 mm thermal printer and a dual-lens camera in one compact
floor-standing cabinet — a ready-to-deploy all-in-one machine for self-ordering, payment,
check-in and ticketing projects.
- 23.8″ capacitive touch screen, 1920 × 1080 Full HD, 16:9
- Quad-core 1.8 GHz Cortex-A17, Rockchip RK3288, Android 7.0
- Built-in QR code reader — scans 1D/2D barcodes on screens or paper
- Built-in 58 mm thermal printer, 150 mm/s line thermal printing
- Dual-lens 2 MP camera, 1920 × 1080 × 2, driver-free USB
- Floor-standing cabinet, 1601.7 mm height · OEM/ODM customization
Display & Touch Screen
A 23.8-inch Full HD capacitive touch screen sized for comfortable standing interaction in retail, restaurant, healthcare and service-hall environments.
| 23.8″ Capacitive Touch Display | |
|---|---|
| Screen Size | 23.8-inch capacitive screen |
| Native Resolution | 1920 × 1080 (16:9) |
| Touch Method | Finger, capacitive stylus |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 8 ms |
Android System & Mainboard
Processor
Quad-core 1.8 GHz Cortex-A17
Memory & Storage
2 GB RAM + 16 GB internal storage
Network
Wired Ethernet, wireless Wi-Fi and Bluetooth
Interfaces & OS
HDMI output ×1, SD card slot ×1, USB 2.0 ×2, RJ45 ×1, 3.5 mm audio output ×1
Integrated Function Modules
Scanning, printing and imaging hardware is built into the terminal head — no external peripherals required for standard self-service workflows.
▦ QR Code Reader
640 × 480 sensor with a wide 72° field of view
🖨️ Thermal Printer
Line thermal printing on 58 mm paper width
📷 Dual-Lens Camera
2 MP dual-lens camera for face capture and verification

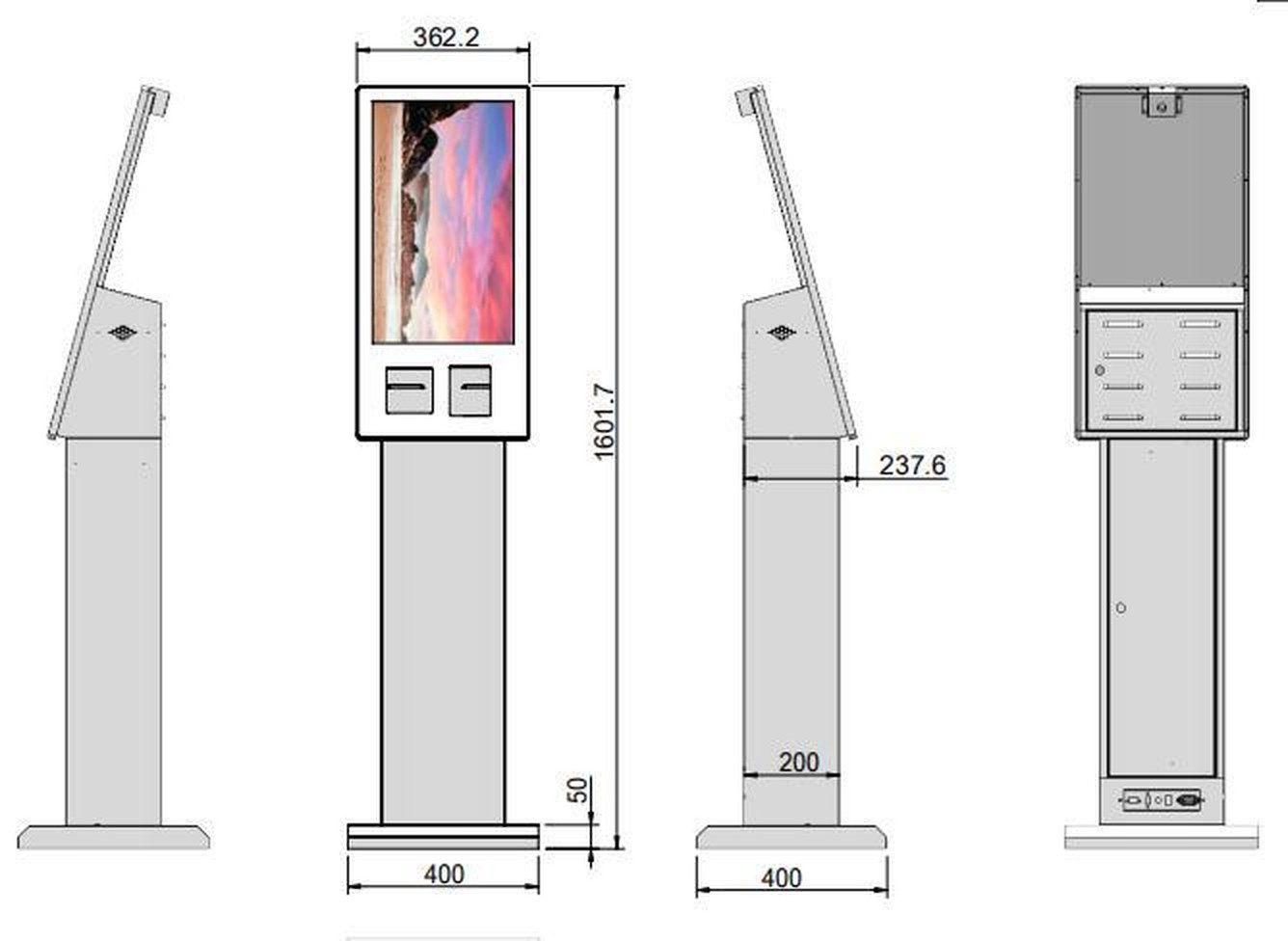

Dimensions & Structure
- Overall height — 1601.7 mm floor-standing design for standing operation
- Terminal head — 362.2 mm wide, tilted touch screen with QR reader and printer bay below
- Cabinet depth — 237.6 mm slim profile, easy to place against walls or in aisles
- Base — 400 mm wide stable floor base, 50 mm base height
- Customization — cabinet color, logo branding and module combinations available for OEM/ODM projects
Applications
Self-ordering and payment in restaurants, visitor check-in and ticketing in hospitals and service halls, member verification with the dual-lens camera, queue number printing, and barcode/QR scanning in retail and logistics terminals.
Quality & Service
Quality Control
Component screening, model optimization and full aging tests before delivery for high stability and anti-interference.
Warranty
1-year free repair for non-human damage; lifetime paid maintenance after warranty.
Customization
Custom cabinet colors, logo silk-print, module combinations and system images for OEM/ODM orders.

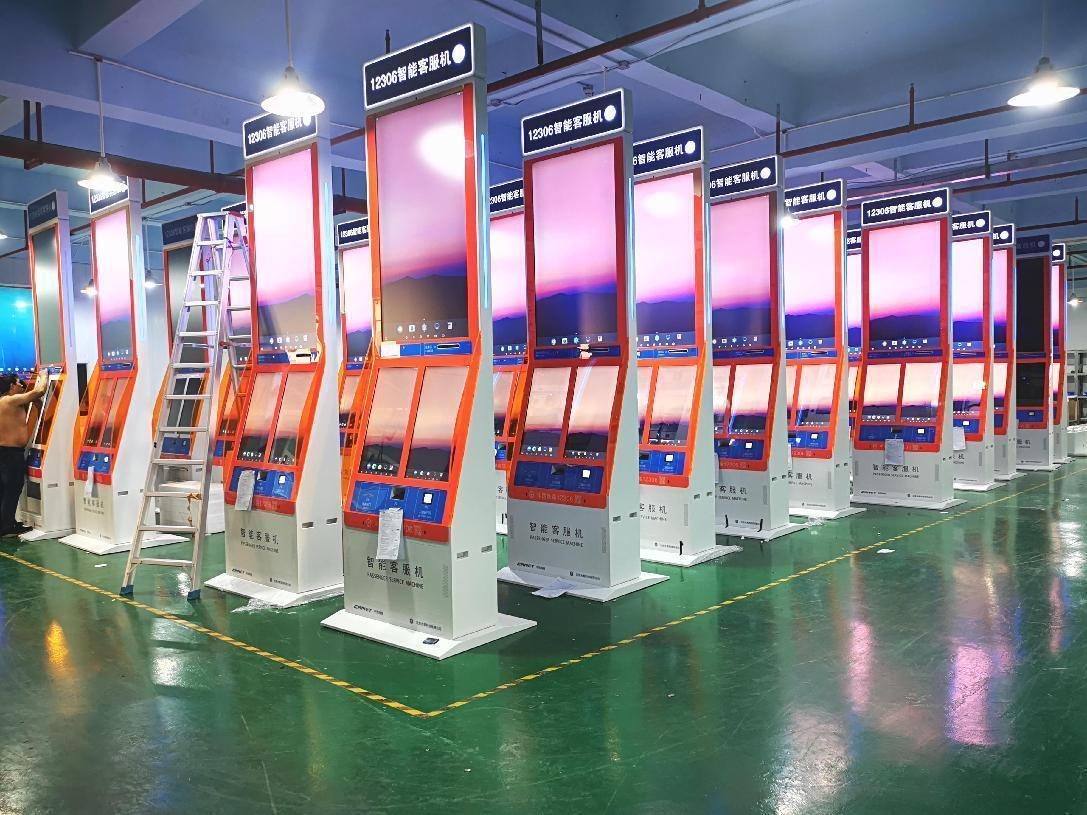

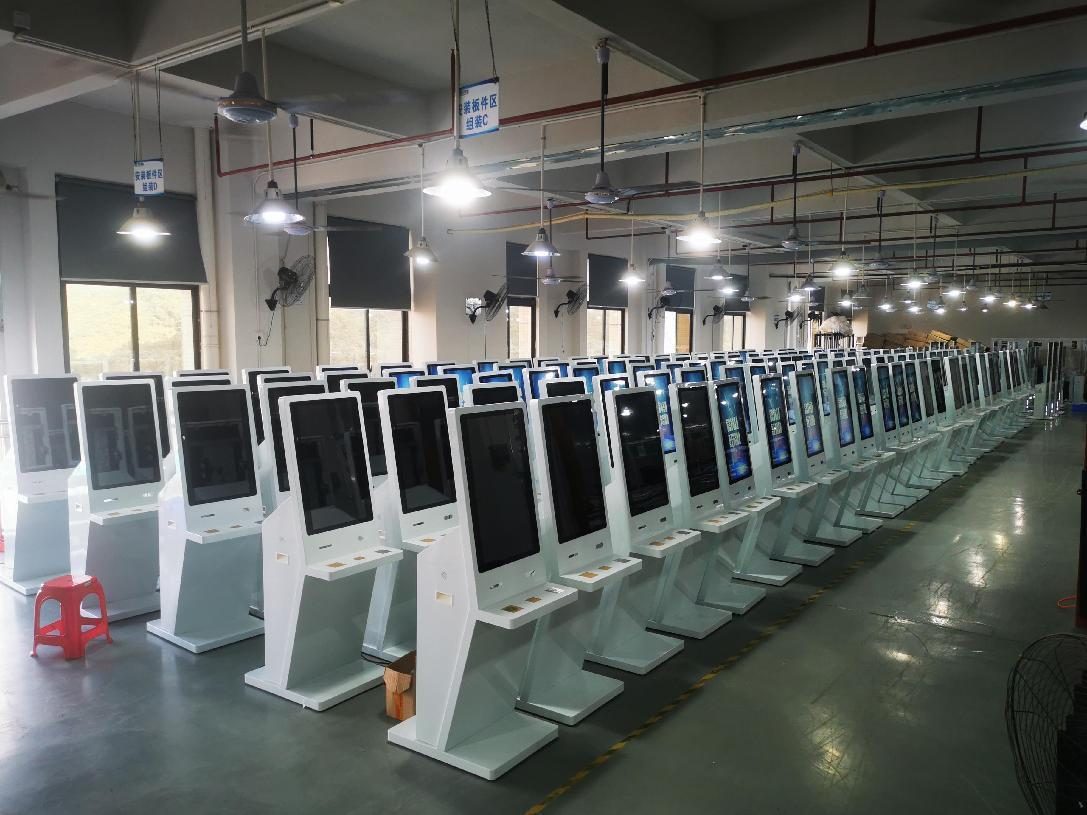

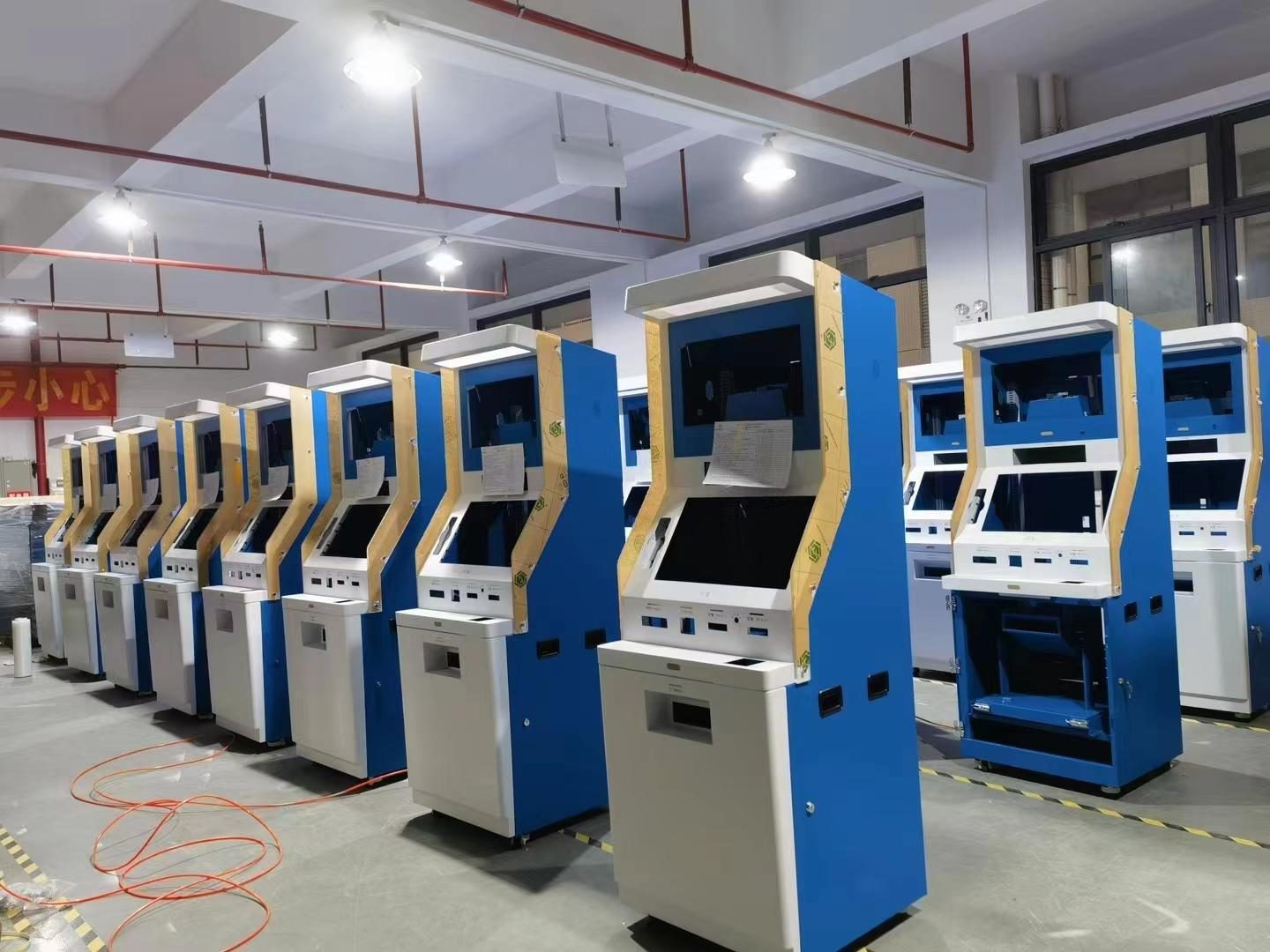

From Our Factory
23.8″ Self-Service Terminal FAQ
What hardware is built into the 23.8-inch self-service terminal?
The terminal head integrates a QR code reader (1D/2D barcodes on screens or paper), a 58 mm line thermal printer (150 mm/s) and a dual-lens 2 MP camera (1920 × 1080 × 2, USB), together with the 23.8-inch Full HD capacitive touch screen.
Which operating system and platform does it use?
It runs Android 7.0 on a Rockchip RK3288 mainboard with a quad-core 1.8 GHz Cortex-A17 CPU, 2 GB RAM and 16 GB storage. Wired Ethernet, Wi-Fi and Bluetooth are supported.
What interfaces are available for external devices?
The terminal provides 1 × HDMI output, 1 × SD card slot, 2 × USB 2.0, 1 × RJ45 Ethernet and 1 × 3.5 mm audio output for project integration.
What are the overall dimensions of the kiosk?
The floor-standing cabinet is 1601.7 mm high with a 362.2 mm wide terminal head, 237.6 mm cabinet depth and a 400 mm wide floor base.
Can LFTouch customize this terminal for our project?
Yes. Cabinet color, logo branding, memory/storage configuration and function module combinations can be customized for OEM/ODM orders. Send us your requirements for a quotation.
