SK Series Self-Service Kiosk — 21.5″ to 32″ Wall-Mounted & Floor-Standing
Designed for self-ordering, payment, check-in and inquiry applications, the SK Series combines a Full HD capacitive touch display, an industrial Android mainboard and a modular peripheral bay inside a custom sheet-metal cabinet — a complete self-service terminal ready for commercial projects.
- 21.5″ / 24″ / 27″ / 32″ Full HD 1920 × 1080 IPS display
- G+G 10-point capacitive touch with 4 mm tempered glass
- RK3568 quad-core, 4 GB + 32 GB, Android 11 (Windows optional)
- Optional printer, QR scanner, NFC/IC & ID card readers, camera, fingerprint
- Sheet-metal cabinet, tempered-glass front, piano-lacquer finish

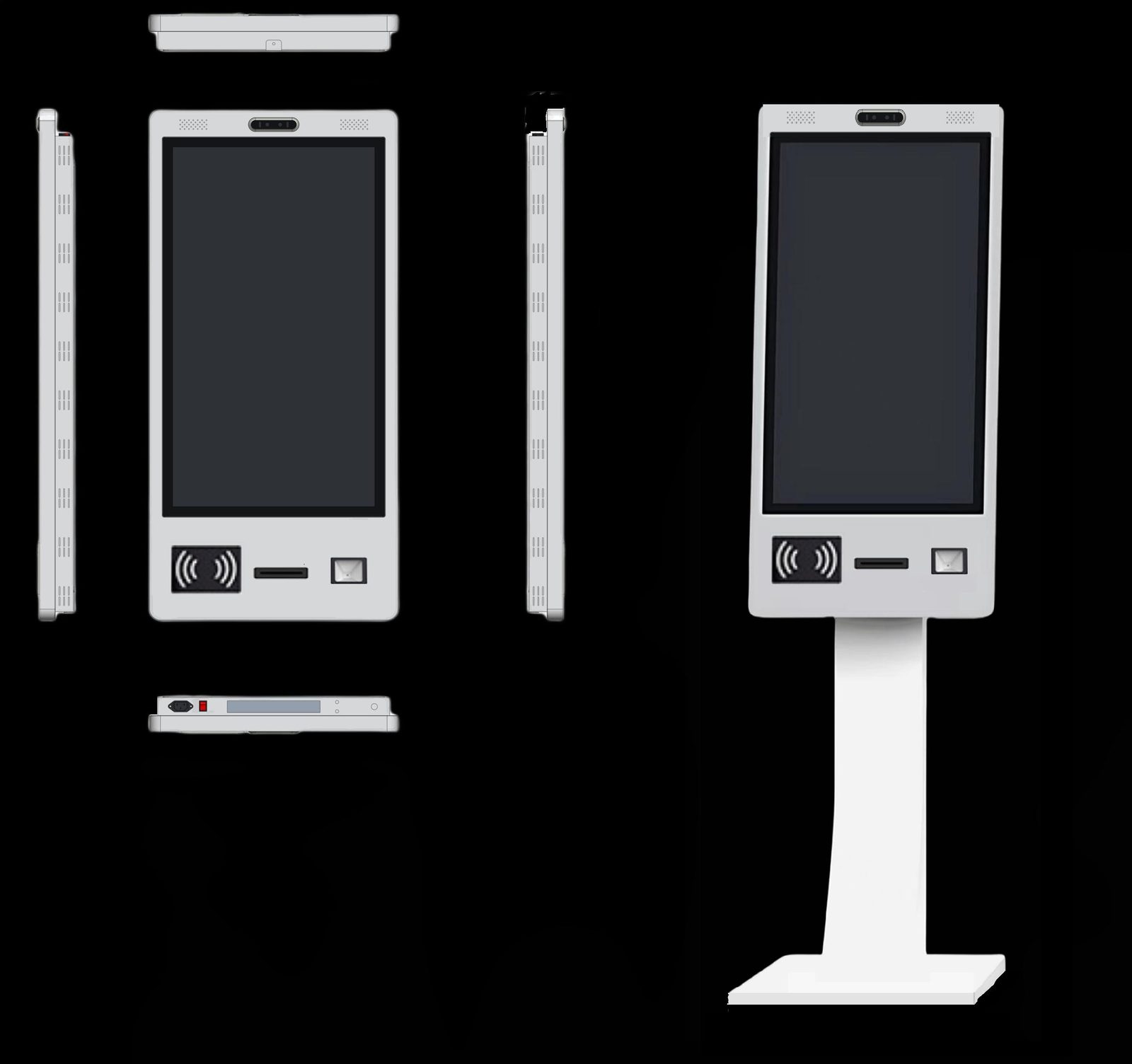

- Wall-mounted or floor-standing · custom color and logo
Display Size Options
Four standard screen sizes on the same cabinet platform. All models use new IPS LED hard panels with Full HD resolution and wide 178° viewing angles.
| Specification | 21.5″ | 24″ | 27″ | 32″ |
|---|---|---|---|---|
| Panel Type | New IPS LED hard panel | |||
| Native Resolution | 1920 × 1080 (16:9) | |||
| Display Area (H×V) | 476.64 × 268.11 mm | 527.04 × 296.46 mm | 597.88 × 336.31 mm | 708.90 × 398.50 mm |
| Viewing Angle | 178° / 178° (H/V, typical) | |||
| Brightness | 200–250 cd/m² | 200–250 cd/m² | 200–250 cd/m² | 250–300 cd/m² |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1200:1 |
| Display Colors | 16.7 million | |||
Mainboard & System
Processor
RK3568 quad-core industrial board @ 1.8 GHz
Memory & Storage
4 GB RAM + 32 GB internal storage
Network
Wired Ethernet, Wi-Fi, Bluetooth
Interfaces & Audio
2×USB, 1×SD, 1×HDMI, 1×RJ-45, 1×SIM, DC-12V
Touch Specification
| G+G Capacitive 10-Point Touch Screen | |
|---|---|
| Touch Resolution | 4096 × 4096 |
| Cover Glass | 4 mm tempered glass, anti-glare, impact-resistant |
| Interface / Response | USB · 8 ms response · ±2 mm accuracy over 95% of touch area |
| Durability | Over 60 million single-point touches, drift-free |
| Touch Medium | Finger, stylus or other opaque objects |
Optional Function Modules
Configure the lower bay per project — modules are optional and combinable. Cooperated brands or client-specified brands are available.
🖨️ Thermal Printer
YSDA-T58D line thermal printer
▦ QR Code Scanner
Embedded QR / barcode scanning module
💳 Contactless Card Reader
IC / NFC reader (M1, Mingtai Aohan)
🪪 Contact Card Reader
SYC580 contact card reader
🆔 2nd-Gen ID Card Reader
Cooperated or client-specified brand
📷 Camera Module
Monocular / binocular, 1–5 MP options
Fingerprint Module
512 DPI optical fingerprint sensor
🎙️ Voice & Card Dispenser
Voice pickup module · automatic card dispenser
Cabinet & Installation
- Metal construction — automotive-grade sheet-metal integrated cabinet with a stylish, market-trend design
- Surface treatment — tempered-glass front panel with piano-lacquer finish
- Color options — standard white; custom colors and logo silk-print on request

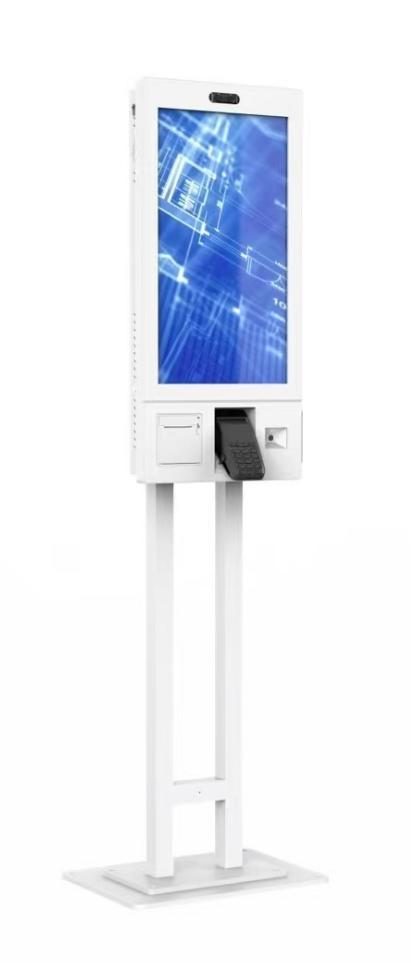

- Installation — wall-mounted or freestanding floor stand
- Included accessories — mounting screws, power cable, keys, user manual, certification tag and warranty card
Applications

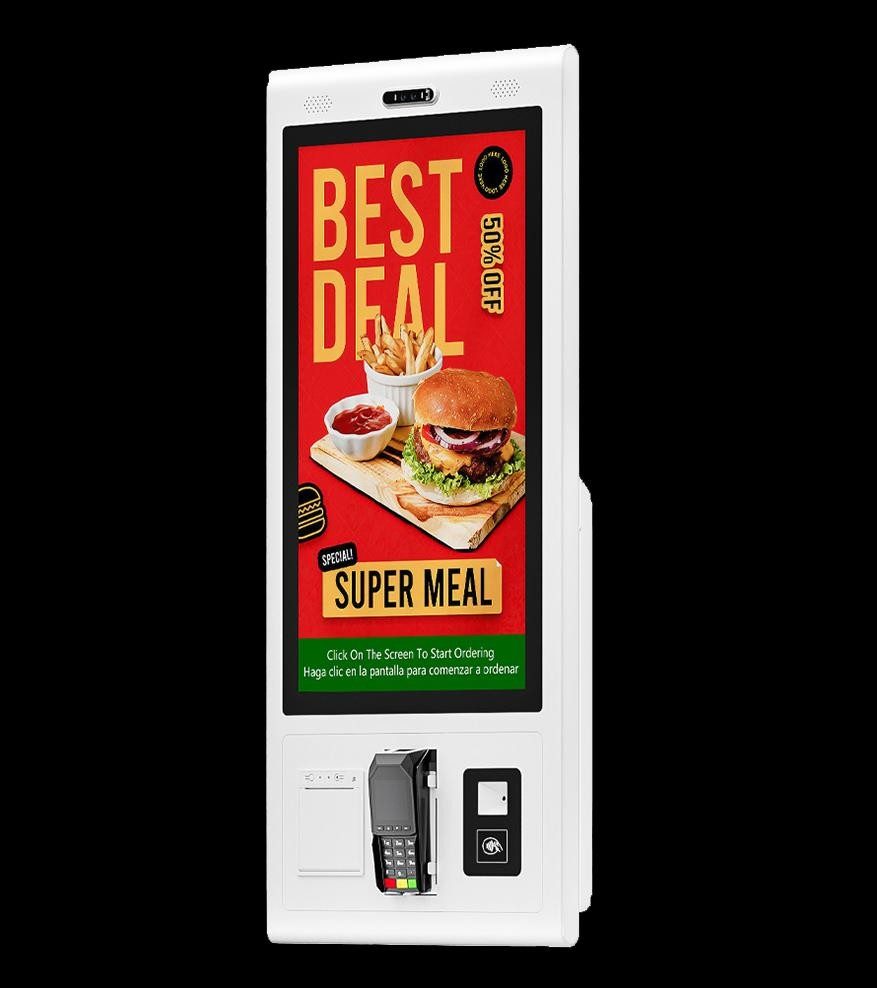

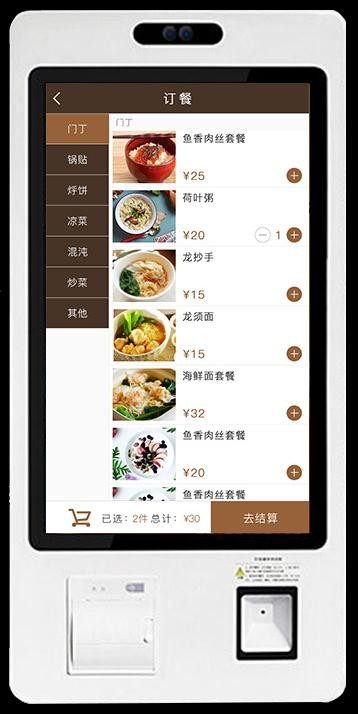

Ideal for self-ordering and payment in restaurants, patient check-in in healthcare, self-service in libraries, queuing and card services in banking, and information inquiry in government and retail terminals.
Operating Environment & Service
Operating Conditions
−10 °C to 50 °C (recommended 0–45 °C) · 10%–90% RH
Quality Control

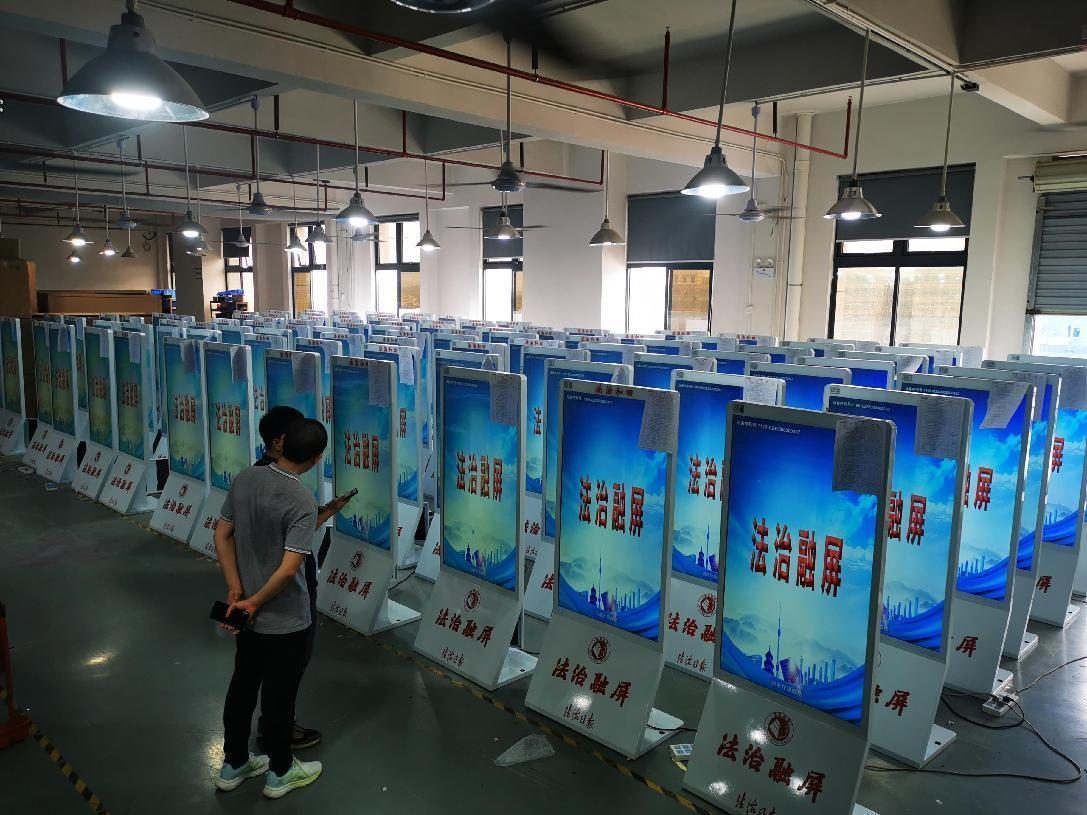

Component screening, model optimization and full aging tests before delivery for high stability and anti-interference.
Warranty
1-year free repair for non-human damage; lifetime paid maintenance after warranty.
From Our Factory
SK Series FAQ
Which operating systems does the SK Series kiosk support?
The standard configuration runs Android 11.0 on an RK3568 quad-core industrial board with 4 GB RAM and 32 GB storage. Windows or Linux configurations are available for project orders.
Can I add a receipt printer and a QR code scanner to the same kiosk?
Yes. The modular lower bay supports combining a thermal printer, QR/barcode scanner, NFC/IC card reader, camera, fingerprint sensor, ID card reader and card dispenser in one cabinet.
Is the SK Series suitable for outdoor use?
The SK Series is designed for indoor commercial environments, operating from −10 °C to 50 °C. For outdoor projects, contact us for high-brightness and weatherproof cabinet customization.
Can LFTouch customize the kiosk color and branding?
Yes. Standard color is white with a piano-lacquer finish. Custom colors, logo silk-print and branded front panels are supported for OEM/ODM orders.
What is included with the kiosk?
Each unit ships with mounting screws, power cable, keys, user manual, certification tag and warranty card, ready for wall-mounted or floor-standing installation.
Configure Your SK Series Kiosk
Tell us your application, screen size, module list, color and quantity — our team will reply with a configuration and quotation.
