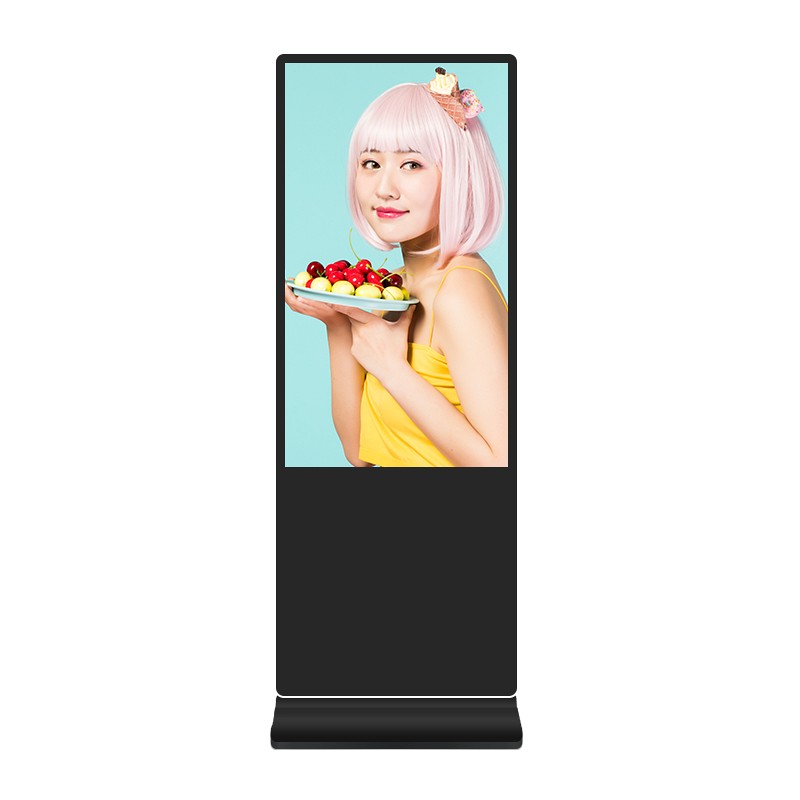

Floor-Standing IR Touch Kiosk
A free-standing interactive display terminal for retail, hospitality and public venues — 32″ to 65″, touch optional, cloud-managed.
Overview
The LF-FST-IR series is a floor-standing interactive kiosk designed for high-traffic commercial environments. Built around an industrial-grade LED panel rated for 7×24 continuous operation, it combines a slim metal enclosure with flexible configuration options — touch or non-touch, standalone or cloud-managed. From retail wayfinding to hotel lobbies and self-service information points, the LF-FST-IR delivers reliable, eye-catching digital interaction exactly where your customers are standing.
Key Features
- Industrial LED panel, 1920×1080 FHD, rated for 7×24 operation
- Infrared (IR) Touch — A 10-point infrared touch frame that responds to fingers, gloves and any opaque stylus. Tolerant of dust and splashes, it is the proven choice for high-traffic public installations and larger formats.
- Android cloud CMS: remote publishing, scheduling, split-screen, timer on/off
- USB plug-and-play standalone version available for single-site use
- Ultra-slim metal enclosure, black or silver finish
- Full-format media playback: video, image, audio, scrolling text
- OEM/ODM: custom color, logo, camera, printer, NFC/RFID modules on request
Configuration Options
| Option | Available Choices |
|---|---|
| Size | 32″ / 43″ / 50″ / 55″ / 65″ |
| Touch | Non-touch / Infrared / PCAP capacitive (10-point) |
| Operating System | USB Standalone / Android Cloud CMS / Windows |
| Color | Black / Silver |
Specifications
| Size | Display Area (mm) | Brightness | Power | Resolution |
|---|---|---|---|---|
| 32″ | 698 × 393 | 300 nits | 45W | 1920×1080 |
| 43″ | 941 × 530 | 350 nits | 65W | 1920×1080 |
| 50″ | 1096 × 616 | 350 nits | 85W | 1920×1080 |
| 55″ | 1210 × 681 | 350 nits | 100W | 1920×1080 |
| 65″ | 1428 × 803 | 350 nits | 120W | 1920×1080 |
Common Specifications
- Viewing Angle 178°/178°
- Response Time 8ms
- Audio 8Ω 5W × 2
- Standby Power <3W
- Input AC 100–240V, 50/60Hz
- Interface USB / RJ45 / WiFi (4G optional)
- CE / RoHS / FCC compliant
Applications
- Retail wayfinding and promotion
- Hotel lobby welcome and guidance
- Restaurant menu and self-ordering
- Exhibition and event information
- Bank and hospital queue information
- Corporate reception and directory

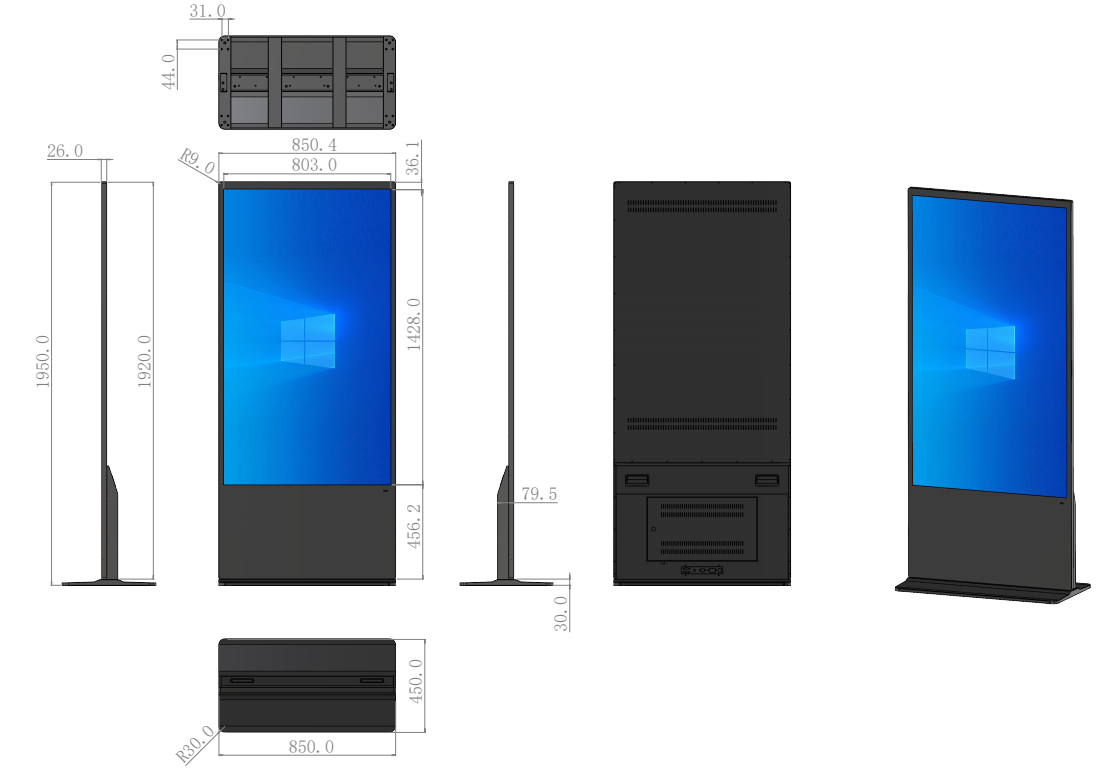

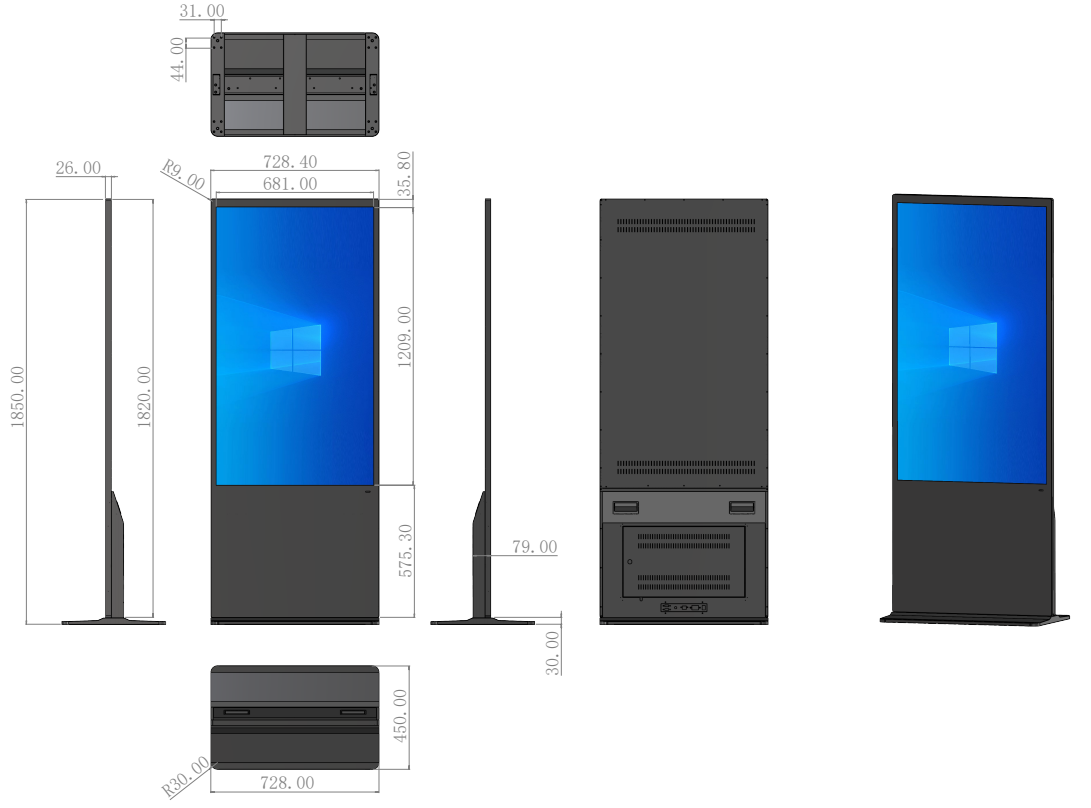

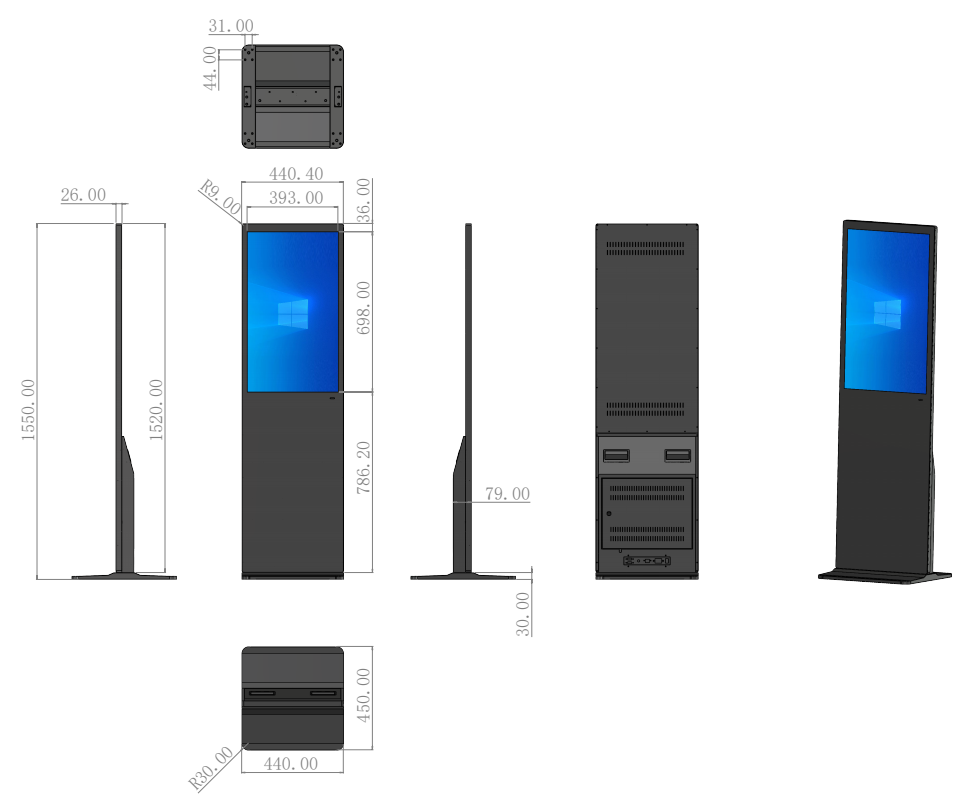

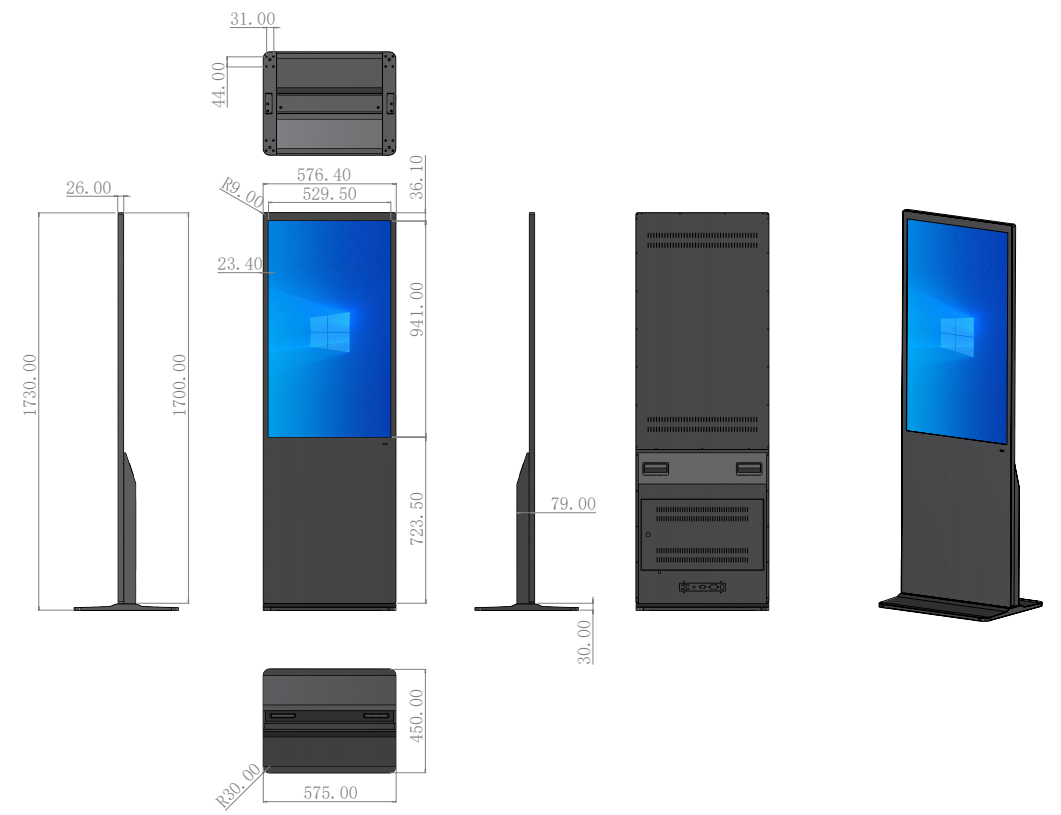

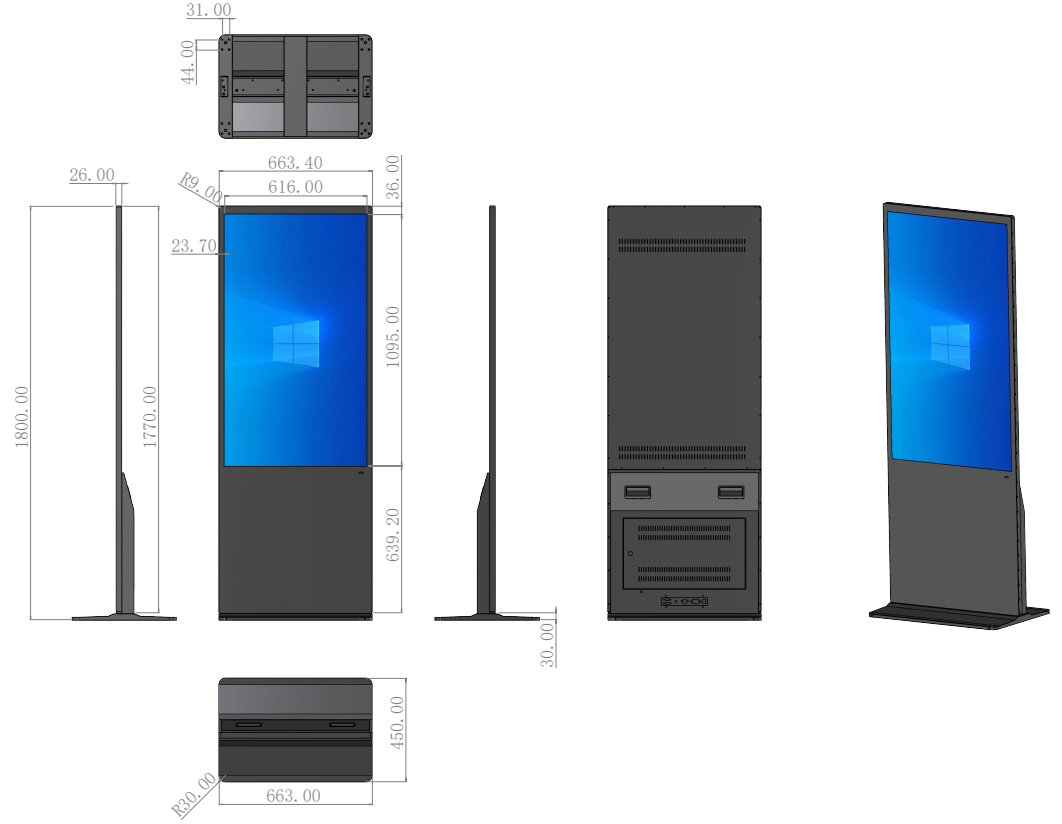

Mechanical Drawings
Full dimension drawings available for every size. Contact us for the 2D/3D files of your selected model.
Get a Quote
Tell us your size, touch and OS preference, we reply within 24 hours.
