32″ Floor-Standing Digital Signage

Model HN320RFL · Black · Portrait · Non-Touch

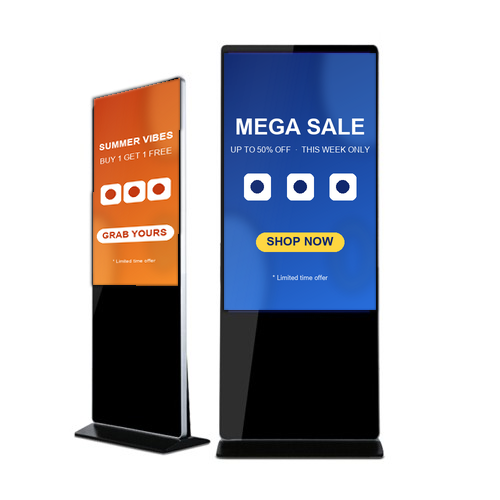

A 32-inch floor standing digital signage display is a free-standing, non-touch advertising terminal — built for promotions, information and brand messaging in retail, hospitality and public venues.

Touch Upgrade Optional

Cloud-Managed

24/7 Rated

178° Viewing

WiFi / LAN / 4G

USB · HDMI · RJ45

FHD 1920 × 1080 panel, 350–700 nits, rated for 24/7 operation
RK3566, Quad-core 1.8 GHz with Android 11 — cloud publishing and scheduling

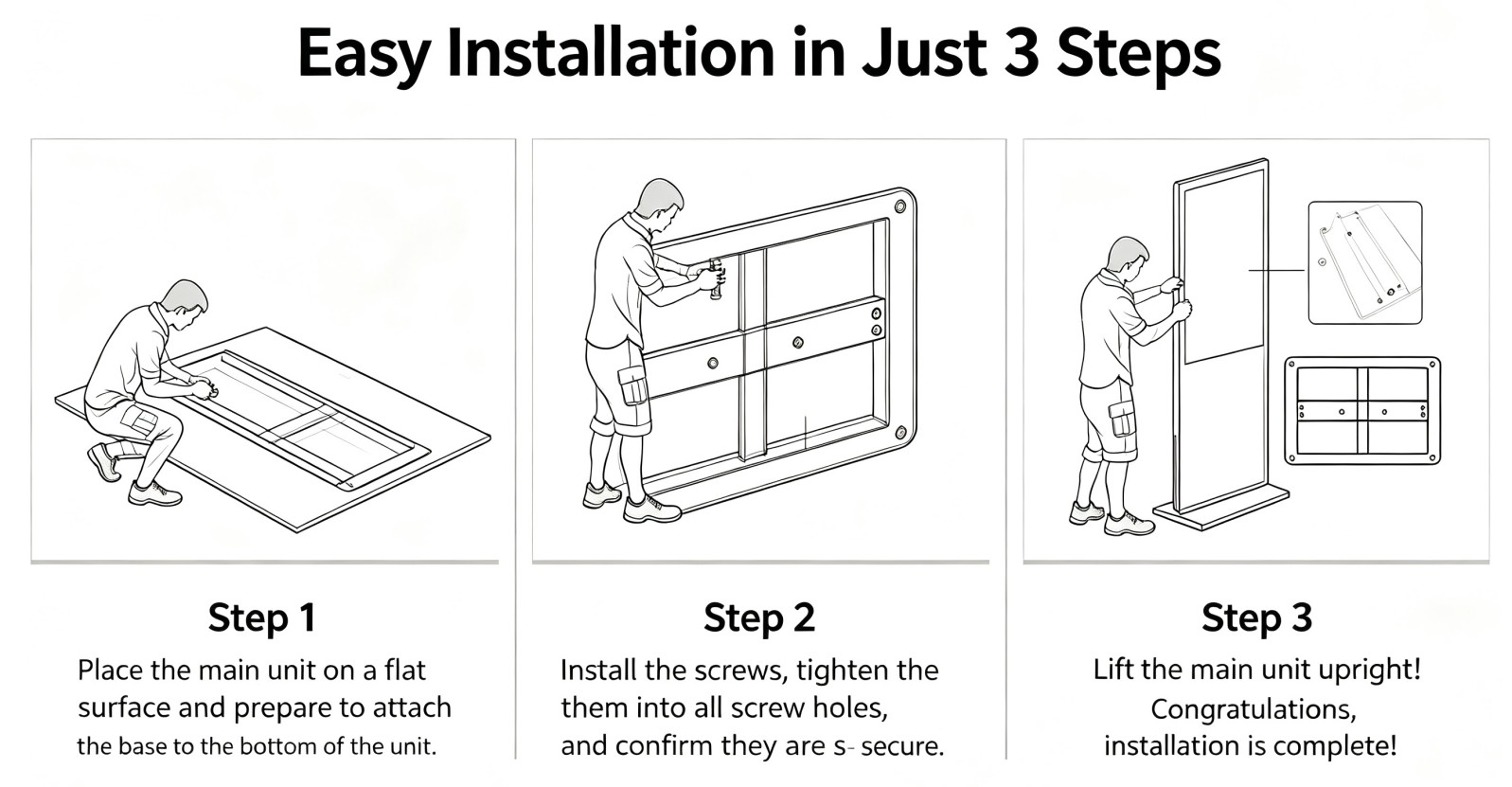

Cold-rolled steel enclosure, 450 mm slim base, free-standing install in 3 steps
Optional universal wheels — smooth mobility on a stable, solid base
WiFi / RJ45 standard, 4G optional · built-in speaker with Bluetooth audio support
Optional touch upgrade — IR or PCAP touch overlay turns it into an interactive kiosk

Get a Quote Download Spec Sheet

Specifications

Technical Specifications

Parameter	HN320RFL
Model	HN320RFL
Screen Size	32″
Screen Active Area	698 × 393 mm
Resolution	FHD 1920 × 1080
Aspect Ratio	16:9
Brightness	350–700 nits
Contrast Ratio	1200:1
Viewing Angle (H/V)	178° / 178°
Backlight Life Cycle	50,000 hrs
Response Time	6 ms
Touch	Non-touch (display only)
Screen Orientation	Portrait
CPU	RK3566, Quad-core 1.8 GHz
GPU	Mali-G52
RAM / Storage	2 GB DDR / 32 GB eMMC
OS	Android 11 / Ubuntu / Linux
Input	USB ×2 · HDMI IN ×1 · RJ45 ×1
Network	WiFi / LAN standard · 3G/4G optional
Speaker	Built-in speaker · Bluetooth speaker support
Mobility	Optional universal wheels
Power Supply	AC 90–240 V, 50/60 Hz, built-in
Power Consumption	60 W (max.)

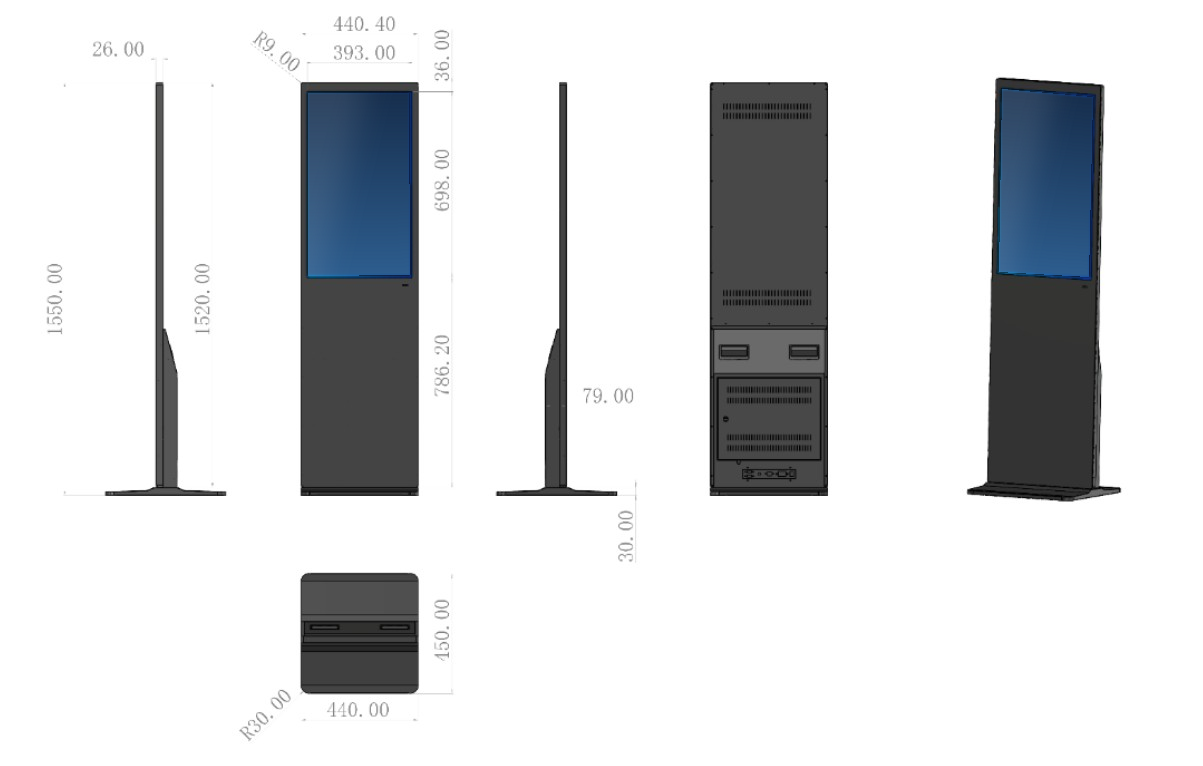

Dimensions (H×W×D)	1550 × 440.4 × 450 mm
Net Weight	22 kg
Gross Weight	25 kg
Packing Dimensions (W×H×D)	1640 × 560 × 160 mm
IP Rating	IP3X (indoor)
Enclosure	Cold-rolled steel, black
Operation Temperature	0 °C to 45 °C, 10–80% RH
Storage Temperature	-10 °C to 50 °C, 10–80% RH
In the Box	Power cable · keys ×2 · remote control · base screws ×6 · antenna · e-manual
