HC-RPC Series · 17″
17″ Embedded Industrial Panel PC
Model HC170RPC · G+G Capacitive Touch · Embedded
A 17″ embedded industrial panel PC combines a G+G 10-point capacitive touch screen with Intel Core computing in a slim sheet-steel back can — drop-in ready for kiosks, machinery HMIs and self-service terminals.
10-Point Capacitive
Intel Core Options
6 Mounting Ways
Tempered Glass Front
Full Viewing Angle
Rich I/O
- G+G projected capacitive touch, 10-point — finger or conductive stylus, >50 M touch life
- Intel Core i3/i5/i7 options (3rd–10th gen) — or an Android ARM board for signage duty

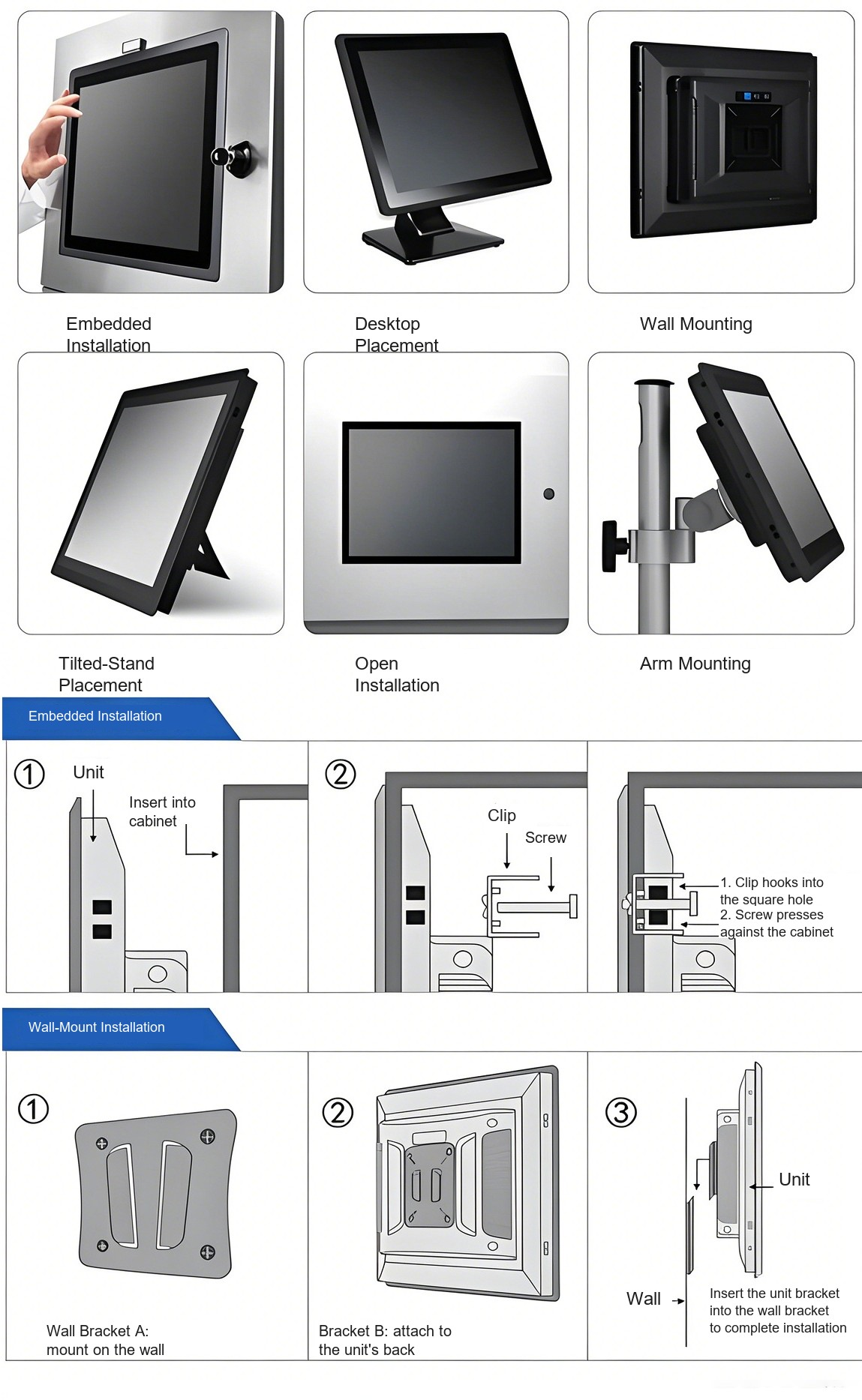

- Six mounting ways: embedded, wall-mount, desktop, VESA arm, floor stand or hanging
- Standard cutout 370.5 × 308.5 mm, R10 — sheet-steel back can drops into kiosks and machine panels
- Tempered glass front with aluminum frame — silver or black finish

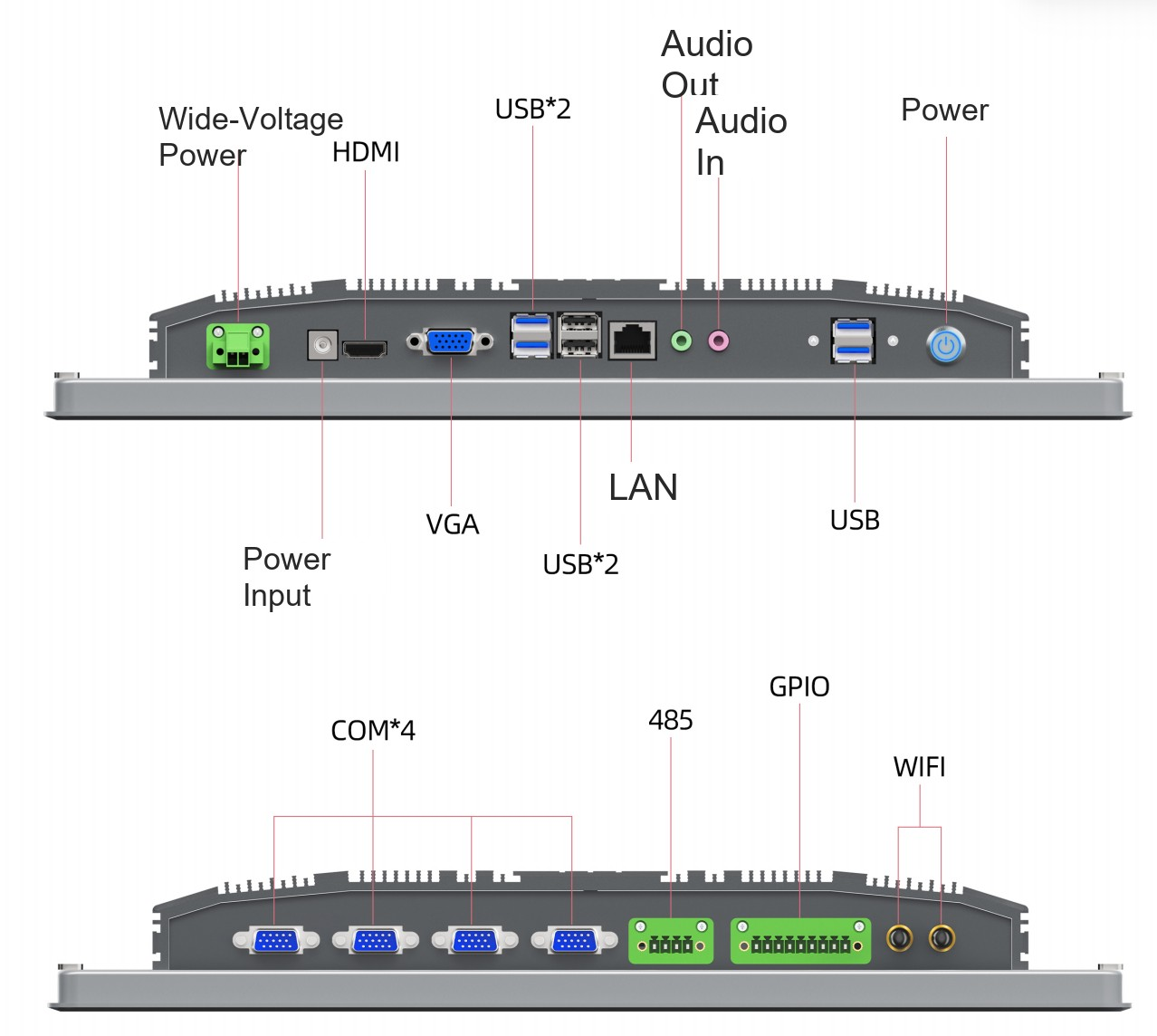

- LAN, COM ×2, USB ×4, VGA and audio on board — COM / USB / LAN expandable
Specifications
Technical Specifications
| Parameter | HC170RPC |
|---|---|
| Model | HC170RPC |
| Screen Size | 17″ |
| Resolution | 1280 × 1024 |
| Aspect Ratio | 5:4 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) · 72% NTSC |
| Colors | 16.7 M |
| Viewing Angle | Full viewing angle |
| Touch | G+G projected capacitive, 10-point · finger / conductive stylus |
| Touch Life | >50 million touches |
| CPU (Windows) | Intel Core i3 / i5 / i7 — 3rd to 10th gen options |
| CPU (Android, opt.) | Quad-core Cortex-A55 2.0 GHz (RK3288 / RK3568 / RK3576 / RK3588) |
| Memory | 4 GB DDR3L (8 / 16 GB optional) |
| Storage | 64 GB SSD (128 / 256 / 512 GB optional · 2.5″ HDD bay) |
| Graphics | Intel HD Graphics |
| Network | Realtek RTL8111F GbE · WiFi + BT optional · 4G optional |
| I/O | LAN ×1 · COM ×2 · USB ×4 · VGA ×1 · LINE OUT · MIC (COM/USB/LAN expandable) |
| Speaker | Built-in 2 W |
| OS | Windows 7 / 8.1 / 10 · Linux · Android optional |

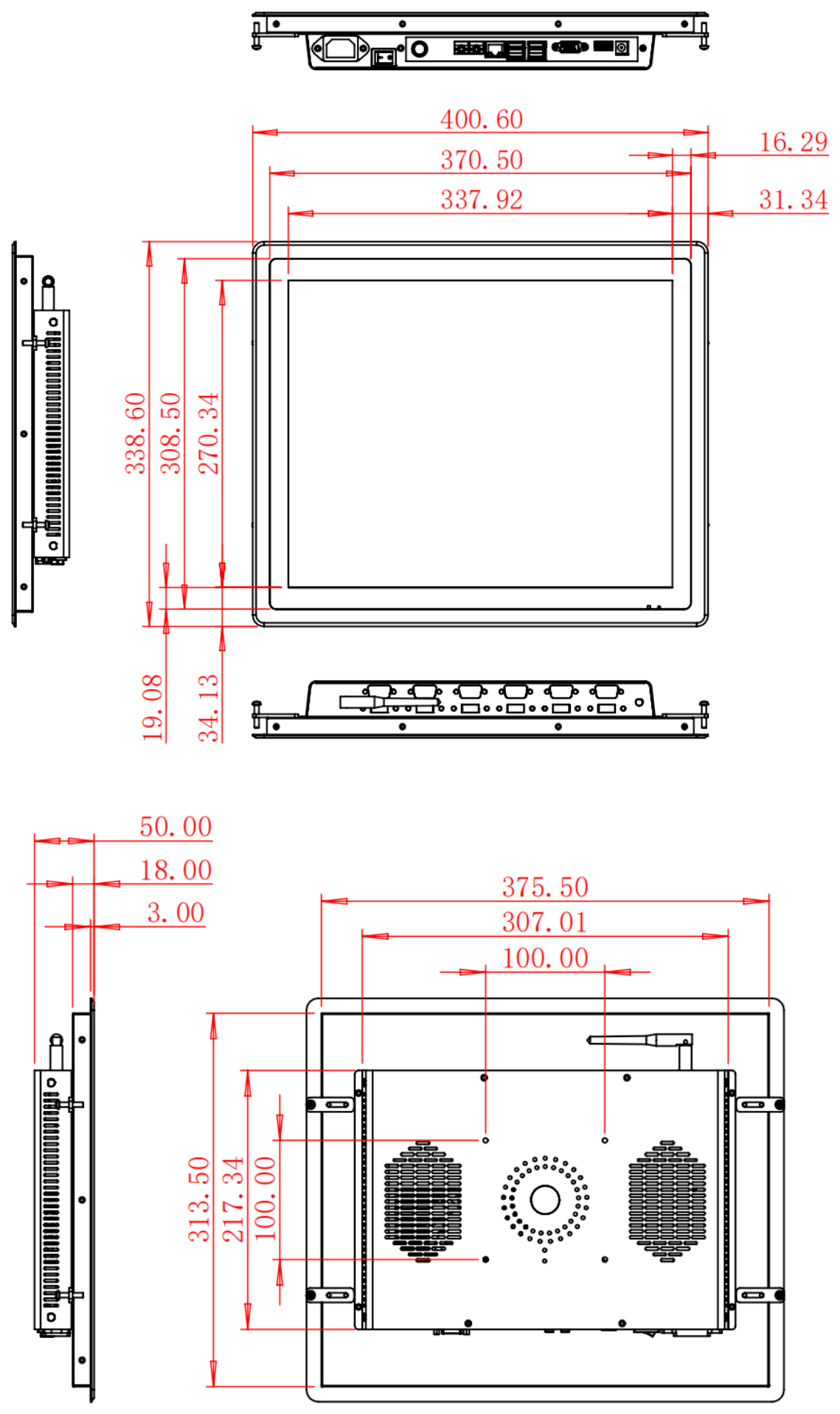

| Overall Dimensions | 400.6 × 338.6 × 50 mm (Windows) / 41 mm depth (Android) |
| Cutout Dimensions | 370.5 × 308.5 mm, R10 |
| Mounting | Embedded · wall-mount · desktop · VESA arm · floor stand · hanging |
| Power Supply | 12 V / 5 A external adapter |
| Operation Temperature | 0 °C to 50 °C |
| Storage Temperature | -10 °C to 60 °C |

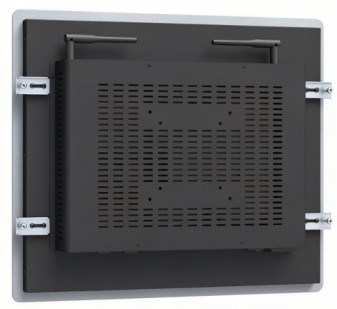

| Enclosure | Tempered glass front · aluminum frame · cold-rolled steel back can, silver / black |
| Packing Dimensions | 455 × 110 × 395 mm |
| In the Box | Panel PC · power adapter · power cord · warranty card · manual |
Applications
Where It Works
RetailInteractive promotions and product browsing at the aisle
HospitalityLobby wayfinding and self check-in guidance
Public VenuesService hall queue and information terminals
Campus & EventsInteractive directories and event information points
