HC-RAO Series · 19″
19″ Fully-Enclosed Industrial Panel PC
Model HC190RAO · G+G Capacitive Touch · Fanless Aluminum
A 19″ fully-enclosed industrial panel PC combines a G+G 10-point capacitive touch screen with Intel Core computing in a fanless all-aluminum housing — sealed for dusty workshops and humid floors, drop-in ready for kiosks, machinery HMIs and self-service terminals.
10-Point Capacitive
Intel Core Options
Fanless Cooling
Fully-Enclosed Aluminum
Fog-Proof Touch
Rich I/O
- G+G projected capacitive touch, 10-point — finger or conductive stylus, >50 M touch life
- Intel Core i3/i5/i7 options (3rd–10th gen) — or an Android ARM board for signage duty

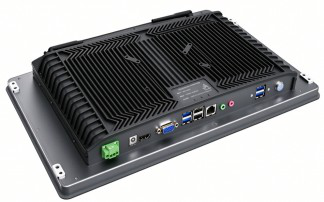

- Fully-enclosed all-aluminum housing with fanless passive cooling — extruded anodized rear cover
- Waterproof & fog-proof touch surface — no condensation in humid environments
- Standard cutout 406.4 × 334.45 mm, R10 — one slim 56.7 mm depth across Windows and Android builds
- LAN, COM ×2, USB ×4, VGA and audio on board — COM / USB / LAN expandable
Specifications
Technical Specifications
| Parameter | HC190RAO |
|---|---|
| Model | HC190RAO |
| Screen Size | 19″ |
| Resolution | 1280 × 1024 |
| Aspect Ratio | 5:4 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) · 72% NTSC |
| Colors | 16.7 M |
| Viewing Angle | Full viewing angle |
| Touch | G+G projected capacitive, 10-point · finger / conductive stylus |
| Touch Life | >50 million touches |
| CPU (Windows) | Intel Core i3 / i5 / i7 — 3rd to 10th gen options |
| CPU (Android, opt.) | Quad-core Cortex-A55 2.0 GHz (RK3288 / RK3568 / RK3576 / RK3588) |
| Memory | 4 GB DDR3L (8 / 16 GB optional) |
| Storage | 64 GB SSD (128 / 256 / 512 GB optional · 2.5″ HDD bay) |
| Graphics | Intel HD Graphics |
| Network | Realtek RTL8111F GbE · WiFi + BT optional · 4G optional |

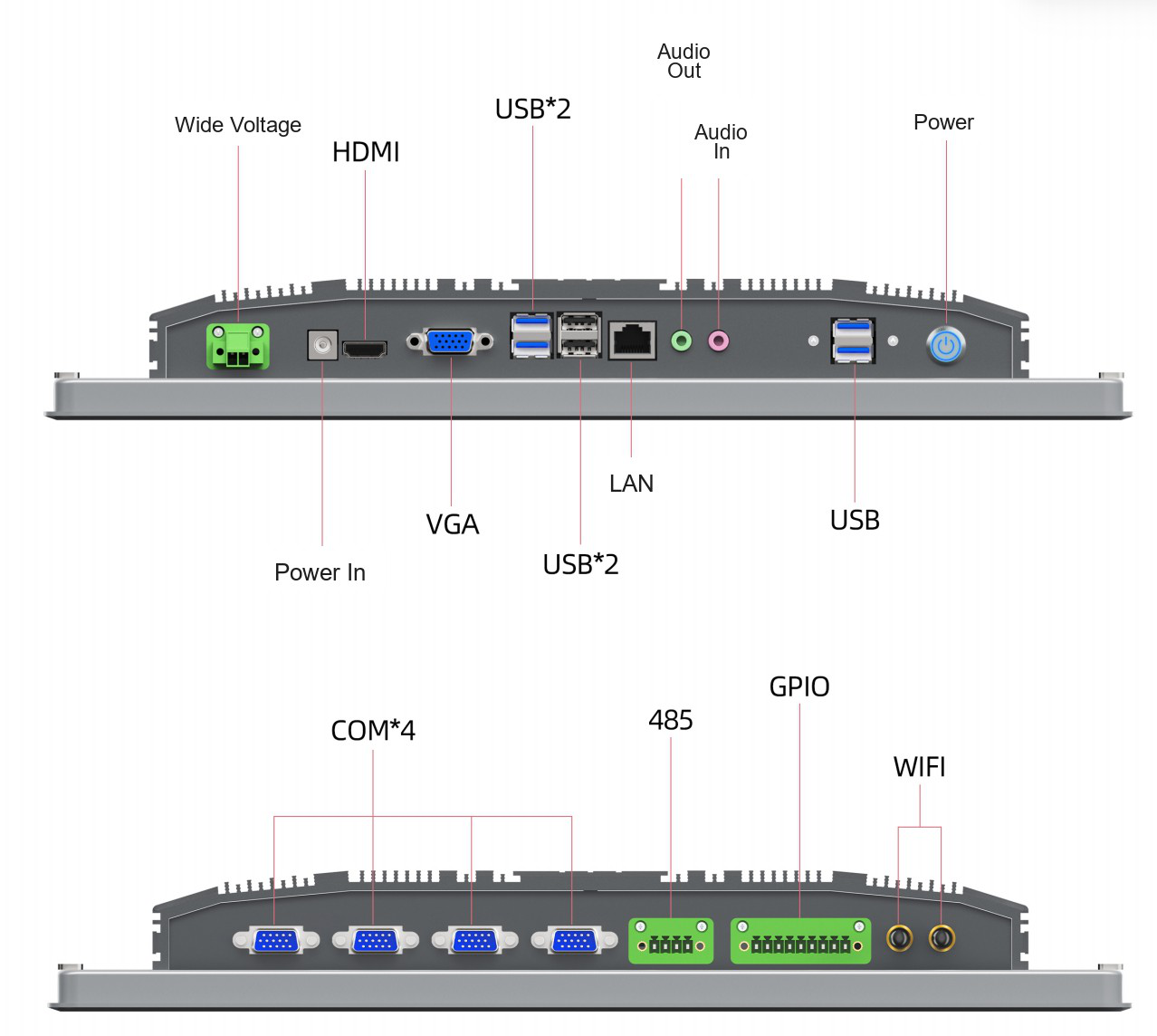

| I/O | LAN ×1 · COM ×2 · USB ×4 · VGA ×1 · LINE OUT · MIC (COM/USB/LAN expandable) |
| Speaker | Built-in 2 W |
| OS | Windows 7 / 8.1 / 10 · Linux · Android optional |

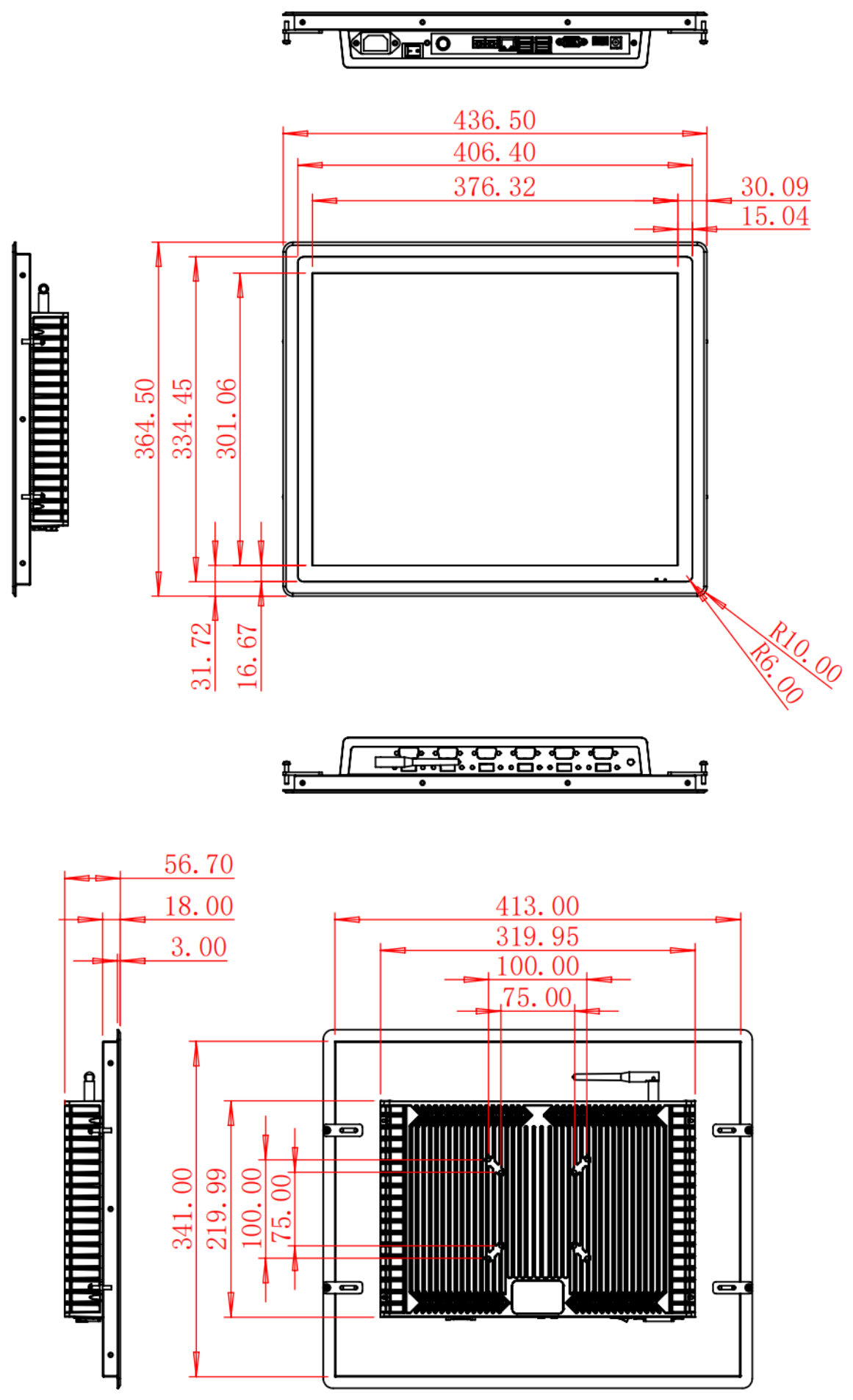

| Overall Dimensions | 436.5 × 364.5 × 56.7 mm |
| Cutout Dimensions | 406.4 × 334.45 mm, R10 |

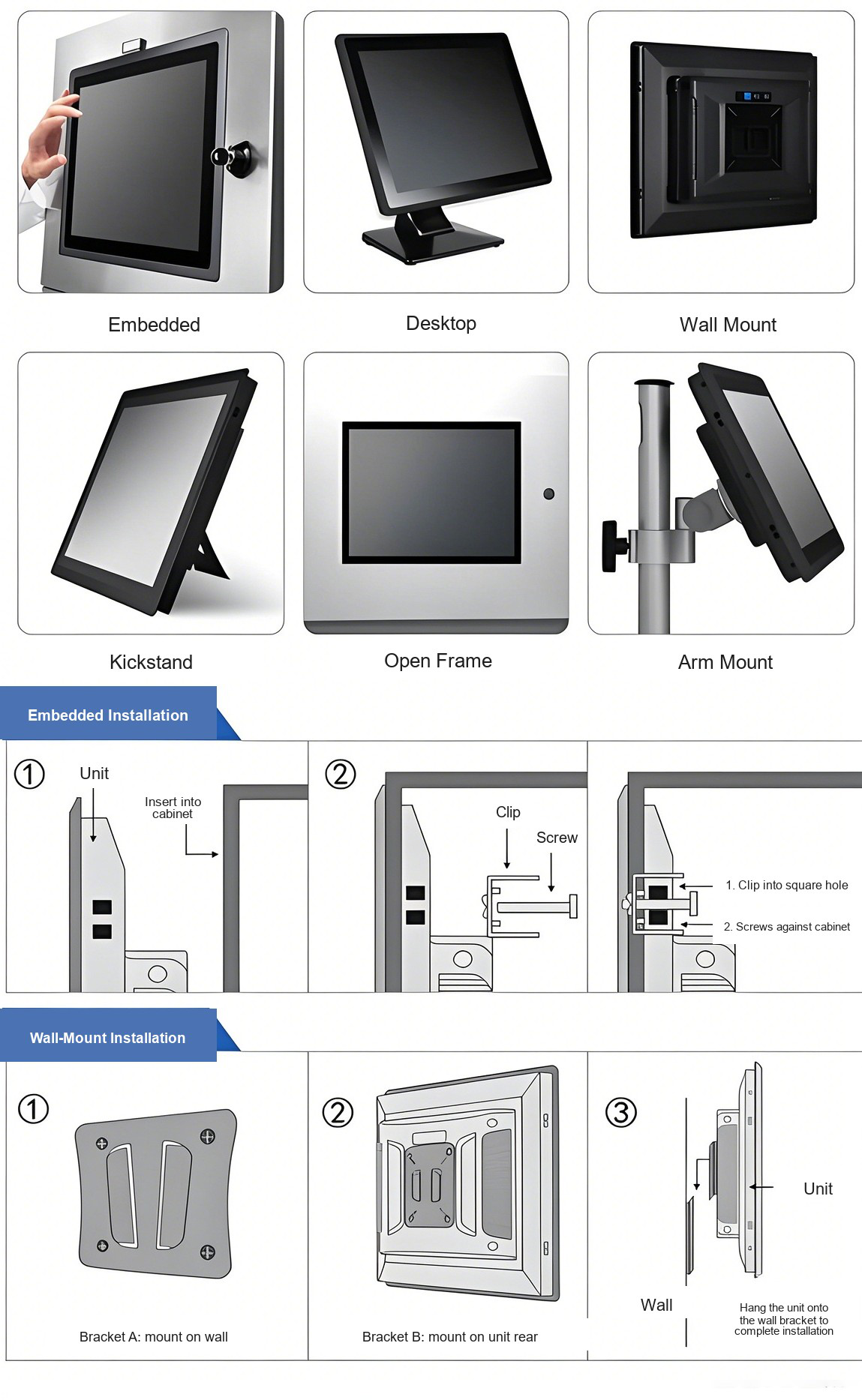

| Mounting | Embedded · wall-mount · desktop · VESA arm |
| Cooling | Fanless passive cooling — extruded anodized aluminum rear cover |
| Power Supply | 12 V / 5 A external adapter |
| Operation Temperature | 0 °C to 50 °C |
| Storage Temperature | -10 °C to 60 °C |
| Enclosure | Fully-enclosed aluminum housing · metallic gray finish · no visible screws |
| Packing Dimensions | 485 × 110 × 425 mm |
| In the Box | Panel PC · power adapter · power cord · warranty card · manual |
Applications
Where It Works
Self-Service KiosksFanless touch computers drop into kiosk cabinets and payment terminals
Machinery HMIOperator panels for machine control and production-line monitoring
Dusty WorkshopsFully-enclosed aluminum housing keeps dust off the screen and internals
Humid EnvironmentsFog-proof touch surface resists condensation in damp conditions
